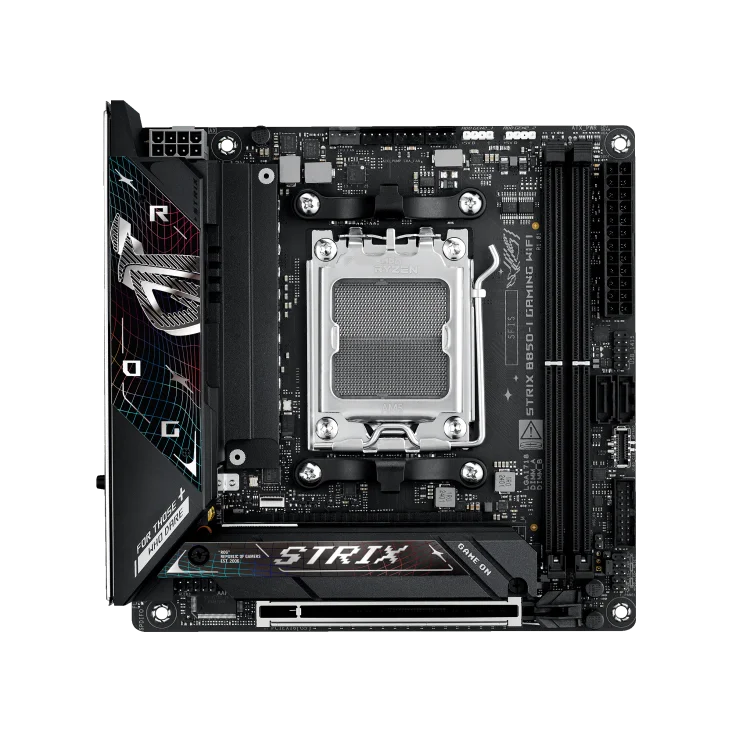

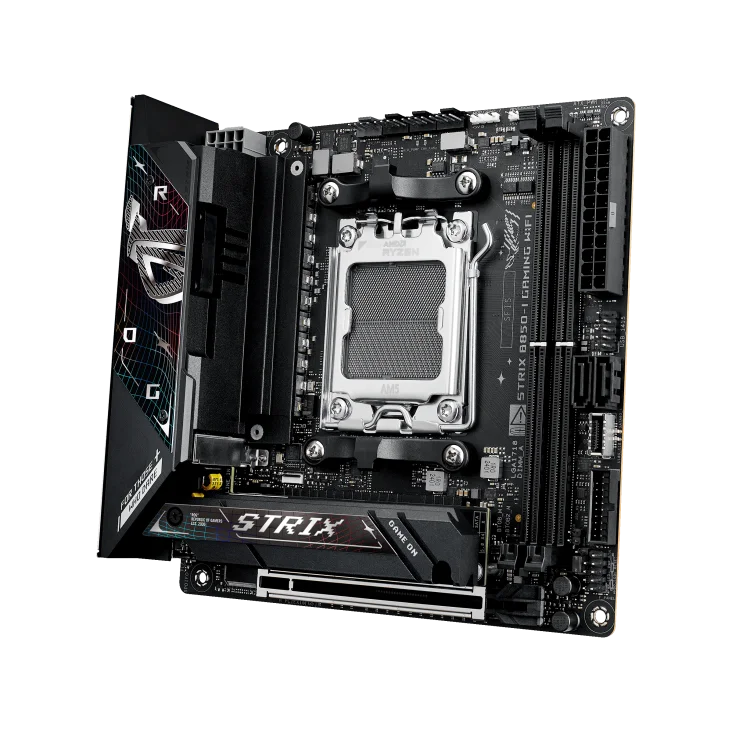

Asus ROG STRIX B850-I GAMING WIFI AM5 Mini-ITX Motherboard
Out of Stock. Check Counterpart Models
-
CPU: AMD Socket AM5 for Ryzen™ 9000, 8000, and 7000 Series Processors
-
Chipset: AMD B850 Chipset
-
Memory: 2 x DIMM, up to 128GB DDR5
Supports up to 8400+ MT/s (OC), ECC & Non-ECC Un-buffered DIMM, Dual Channel Architecture, EXPO and AEMP support -
Graphics: 1 x HDMI™ port (4K@60Hz), 1 x USB Type-C® with DisplayPort Alt Mode (4K@60Hz)
-
Expansion Slots:
Ryzen 9000/7000: 1 x PCIe 5.0 x16 with Q-Release Slim
Ryzen 8000: 1 x PCIe 4.0 x16 with Q-Release Slim -
Storage:
2 x M.2 slots (2242/2260/2280)
– Ryzen 9000/7000: PCIe 5.0 x4
– Ryzen 8000: PCIe 4.0 x4
2 x SATA 6Gb/s ports -
Ethernet: Intel® 2.5Gb Ethernet with ASUS LANGuard
-
Wireless & Bluetooth:
Wi-Fi 7 (2×2, 2.4/5/6GHz), Bluetooth® v5.4
Wi-Fi 7 requires Windows 11 24H2 or later
No driver support for Windows 10
₱19,000.00
Out of Stock. Check Counterpart Models
| CPU | AMD Socket AM5 for Ryzen™ 9000/8000/7000 Series Processors*Refer to ASUS support site for CPU list. |
| Chipset | AMD B850 Chipset |
| Memory | 2 x DIMM, max. 128GB DDR5Up to 8400+ MT/s (OC)ECC & Non-ECC Un-buffered DIMMDual channelEXPO & AEMP support |
| Graphics | 1 x HDMI™ port (4K@60Hz)1 x USB Type-C® with DP Alt mode (4K@60Hz)*Graphics spec varies by CPU |
| Expansion Slots | Ryzen 9000/7000: 1 x PCIe 5.0 x16 with Q-Release SlimRyzen 8000: 1 x PCIe 4.0 x16 with Q-Release Slim |
| Storage | 2 x M.2 (2242/2260/2280)Ryzen 9000/7000: PCIe 5.0 x4Ryzen 8000: PCIe 4.0 x42 x SATA 6Gb/s |
| Ethernet | Intel® 2.5Gb EthernetASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (2×2, 2.4/5/6GHz)Bluetooth® v5.4*Wi-Fi 7 requires Windows 11 24H2+*No Windows 10 driver support |
| USB (Rear) | 1 x USB 20Gbps (Type-C®)5 x USB 10Gbps (4 x Type-A, 1 x Type-C®)2 x USB 2.0 (Type-A) |
| USB (Front) | 1 x USB 10Gbps1 x USB 5Gbps header (2 ports)1 x USB 2.0 header (2 ports)Type-C® PD: 5V/3A |
| Audio | ROG SupremeFX 7.1 HD Audio (ALC4080)120 dB SNR playback / 110 dB recordingUp to 32-Bit/384 kHz (Front)Rear Optical S/PDIF outPremium audio capacitors |

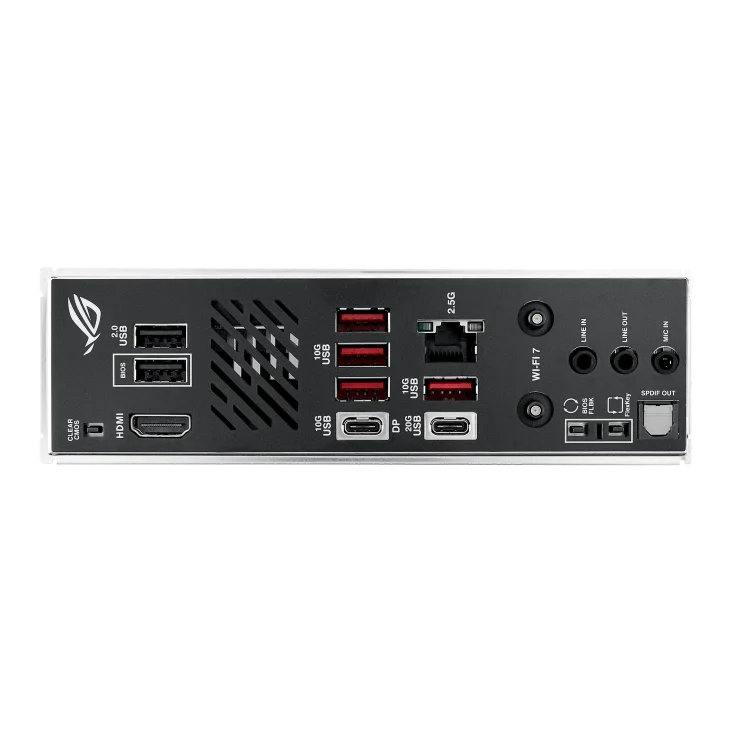

| Back Panel I/O | 1 x USB 20Gbps (Type-C®)5 x USB 10Gbps (4 x Type-A, 1 x Type-C® with DP Alt)2 x USB 2.01 x HDMI™1 x Wi-Fi module1 x 2.5Gb LAN3 x Audio jacks1 x Optical S/PDIFBIOS FlashBack™ / Clear CMOS / FlexKey |
| Internal I/O | 1 x 24-pin ATX1 x 8-pin CPU1 x CPU Fan / 1 x AIO Pump / 1 x Extra Fan / 1 x Chassis Fan2 x M.2, 2 x SATAUSB: 1 x 10Gbps (Type-C®), 1 x USB 5Gbps (2 ports), 1 x USB 2.0 (4 ports)Other: 2 x ARGB Gen2, CPU OV jumper, F_AUDIO, front panel header, thermal sensor |
| Special Features | Extreme Engine Digi+, Q-Design (Q-Latch, Q-Slot, Q-LED, etc.)ASUS EZ DIY (BIOS FlashBack™, SafeDIMM, pre-mounted I/O)Aura Sync with ARGB headers |
| Software | ROG CPU-Z, Dolby Atmos, Armoury Crate, Aura Creator/Sync, Fan Xpert 4, GameFirst, AIDA64 (60d trial), Norton 360 (60d trial), WinRAR (40d trial), TurboV Core, ASUS DriverHub, GlideX |
| BIOS | 256Mb UEFI AMI BIOSEZ Flash 3, CrashFree BIOS 3, MyHotkey |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA cablesASUS WiFi Q-AntennaCable tiesM.2 Q-Latch/Slide/Backplate/Rubber packagesROG key chainROG Strix stickersQuick start guide |
| Operating System | Windows 11 |
| Form Factor | Mini-ITX, 6.7 x 6.7 in (17 x 17 cm) |
| Brands | |
|---|---|
| Form Factor | ITX |
| AMD Chipset | B850 |
| RAM Generation | DDR5 |
| CPU Socket | AM5 |
