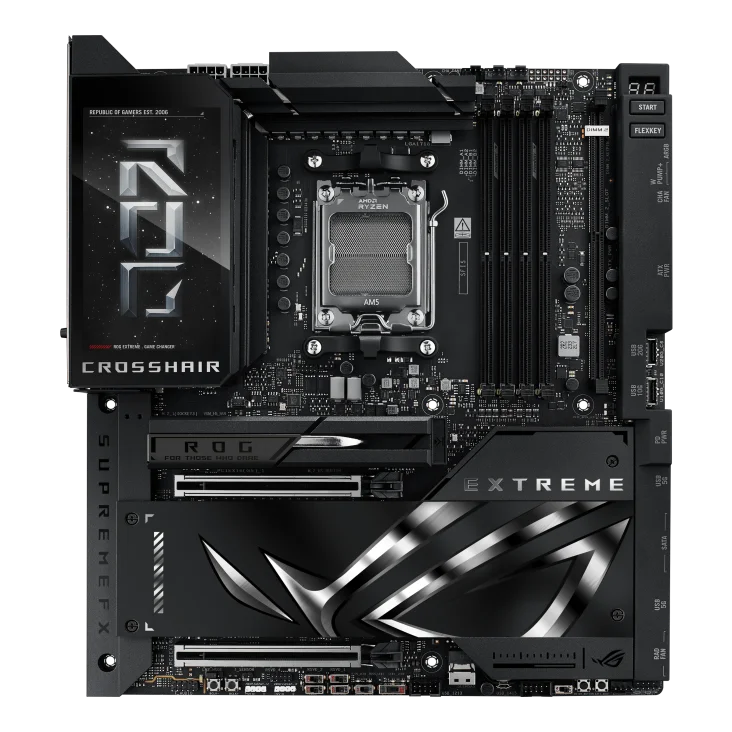

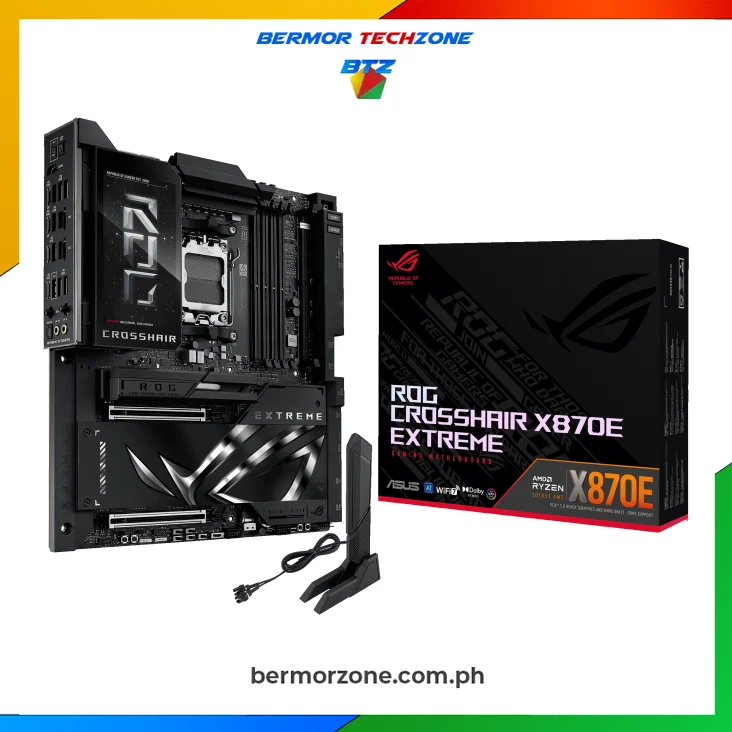

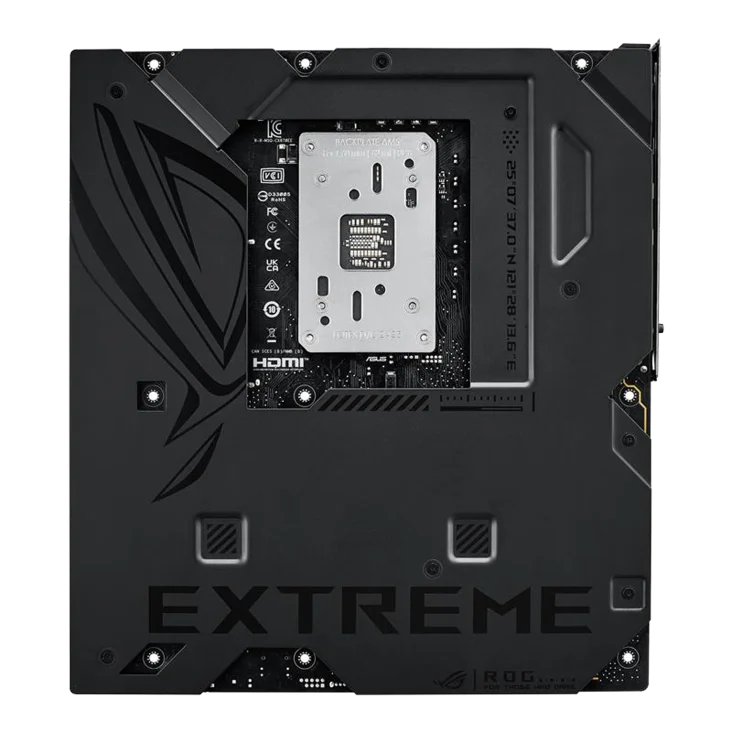

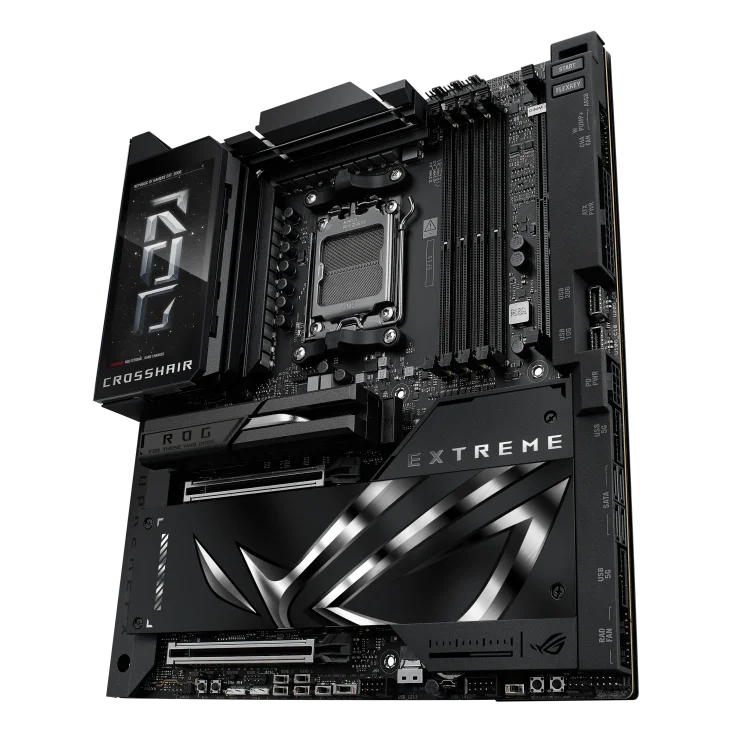

Asus ROG CROSSHAIR X870E EXTREME AM5 9000 Series E-ATX Motherboard
Availability:
Onstock at Online Warehouse
Chipset: AMD X870E
Memory: 4 x DIMM slots, max. 256GB, DDR5
Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*
Wi-Fi 7*
Rear USB (Total 12 ports)
ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
E-ATX Form Factor: 12 inch x 10.9 inch (30.5 cm x 27.7 cm)
₱68,850.00 ₱70,500.00
6-Month Grace monthly payment:
₱6,939
12-Month Full Interest monthly payment:
₱8,141
Learn more about Billease Installment at Checkout
Estimated Delivery: May 20 - May 25, 2026 (Business Days)
Onstock at Online Warehouse
⚡ 24-Hour Shipping Eligible – In-Stock & Ready to Ship
Check items here that is part of our 99% Same-Day Shipping program displayed with 24 Hours Delivery Banner.
✔ Orders placed before 2:00 PM have the highest chance for same-day shipping or delivery.
✔ Orders after 2:00 PM may still be shipped the same day, but no guarantee.
✔ Applies to items labeled under our 24-hour delivery process.
❗ If your cart includes non-eligible items, your order will follow standard processing.
🚚 Nationwide Coverage:
Orders are shipped out within 24 hours across Luzon, Visayas, and Mindanao, depending on courier and location.
📦 Stock-Based System:
This badge appears only on selected product, showcasing our massive inventory selection ready to ship anytime anywhere.
💳 Payment Note: Fully paid orders are eligible for 24hrs Delivery on Selected Cities. COD orders will only be guaranteed shipped within 24 hours.
🕒 View All 24-Hour Eligible Products
Check items here that is part of our 99% Same-Day Shipping program displayed with 24 Hours Delivery Banner.
✔ Orders placed before 2:00 PM have the highest chance for same-day shipping or delivery.
✔ Orders after 2:00 PM may still be shipped the same day, but no guarantee.
✔ Applies to items labeled under our 24-hour delivery process.
❗ If your cart includes non-eligible items, your order will follow standard processing.
🚚 Nationwide Coverage:
Orders are shipped out within 24 hours across Luzon, Visayas, and Mindanao, depending on courier and location.
📦 Stock-Based System:
This badge appears only on selected product, showcasing our massive inventory selection ready to ship anytime anywhere.
💳 Payment Note: Fully paid orders are eligible for 24hrs Delivery on Selected Cities. COD orders will only be guaranteed shipped within 24 hours.
🕒 View All 24-Hour Eligible Products
| Category | Specification |
|---|---|

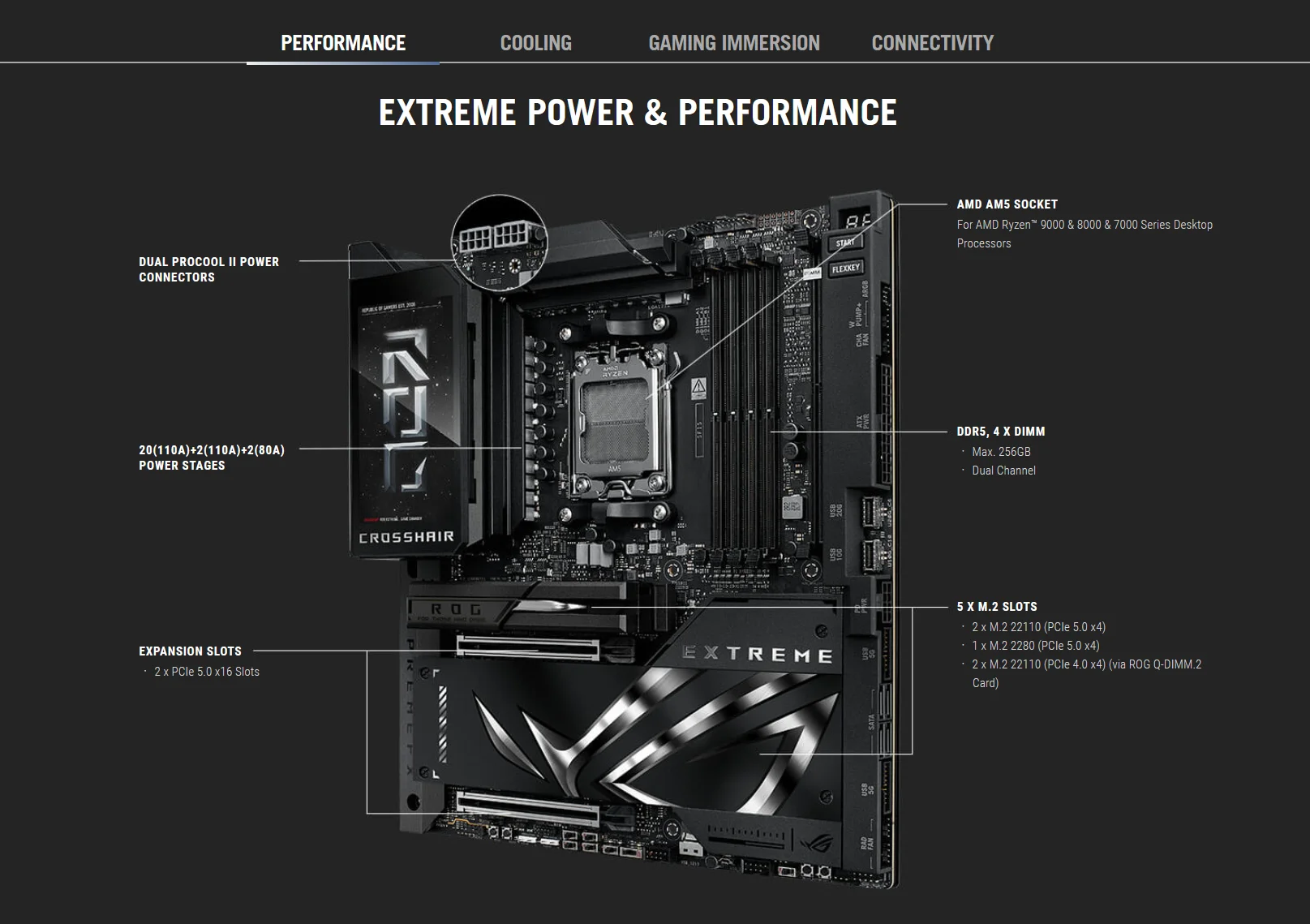

| CPU Socket | AMD Socket AM5 |
| Supported CPUs | AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Chipset | AMD X870E |
Memory
| Slots | 4 x DDR5 DIMM, up to 256GB |
|---|---|
| Speeds (OC) | Up to 8200+MT/s (Ryzen 9000) Up to 9000+MT/s (Ryzen 8000) Up to 8000+MT/s (Ryzen 7000) |
| Features | Dual Channel, ECC/Non-ECC Un-buffered DIMM, EXPO™, AEMP, NitroPath DRAM |
| Notes | On-Die ECC for DDR5 supported |
Graphics
| Output | Ports |
|---|---|
| HDMI | 1 x HDMI 2.1 (4K@60Hz) |
| USB Type-C Display | 2 x USB4® (40Gbps), supports DP 1.4a (4K@60Hz) |
Expansion Slots
| CPU Series | Slot Configurations |
|---|---|
| Ryzen 9000/7000 | 2 x PCIe 5.0 x16 (x16 or x8/x8, x8/x4/x4 with M.2) |
| Ryzen 8700/8600/8400 | 2 x PCIe 4.0 x16 (only x8 usable) |
| Ryzen 8500/8300 | 2 x PCIe 4.0 x16 (only x4 usable) |
Storage
| Interface | Configuration |
|---|---|
| M.2 (CPU) | Up to 3 x PCIe 5.0 x4 (Ryzen 9000/7000) 1 x PCIe 4.0 x4 (Ryzen 8000) |
| M.2 (Chipset) | 2 x PCIe 4.0 x4 via ROG Q-DIMM.2 |
| SlimSAS | 1 x PCIe 4.0 x4 via SFF-8654 |
| SATA | 4 x SATA 6Gb/s |
| RAID Support | 9000: RAID 0/1/5/10 8000: RAID 0/1 7000: RAID 0/1/10 |
Networking
| Type | Chipset |
|---|---|
| Ethernet | 1 x Realtek 5GbE + 1 x Marvell AQtion 10GbE |
| Wireless | Wi-Fi 7 (2×2, 2.4/5/6GHz), Bluetooth® v5.4 |
USB Ports
| Location | Ports |
|---|---|
| Rear | 2 x USB4 (40Gbps Type-C) 10 x USB 10Gbps (8 x Type-A, 2 x Type-C) |
| Front | 1 x USB 20Gbps (Type-C, up to 60W PD/QC4+) 1 x USB 10Gbps (Type-C) 4 x USB 5Gbps (via 2 headers) 4 x USB 2.0 (via 2 headers) |
Audio
| Codec | ROG SupremeFX ALC4082 |
|---|---|
| Features | ESS ES9219 QUAD DAC 120 dB SNR playback 32-Bit/384kHz playback LED jacks, Optical S/PDIF, 7.1 Surround support |
Rear I/O
| Ports |
|---|
| 2 x USB4 (Type-C) |
| 10 x USB 10Gbps |
| 1 x HDMI |
| 2 x LAN (5Gb + 10Gb) |
| 2 x LED Audio Jacks |
| 1 x Optical S/PDIF |
| 1 x BIOS FlashBack™ button |
| 1 x Clear CMOS button |
🧩 Internal Headers
| Category | Headers |
|---|---|

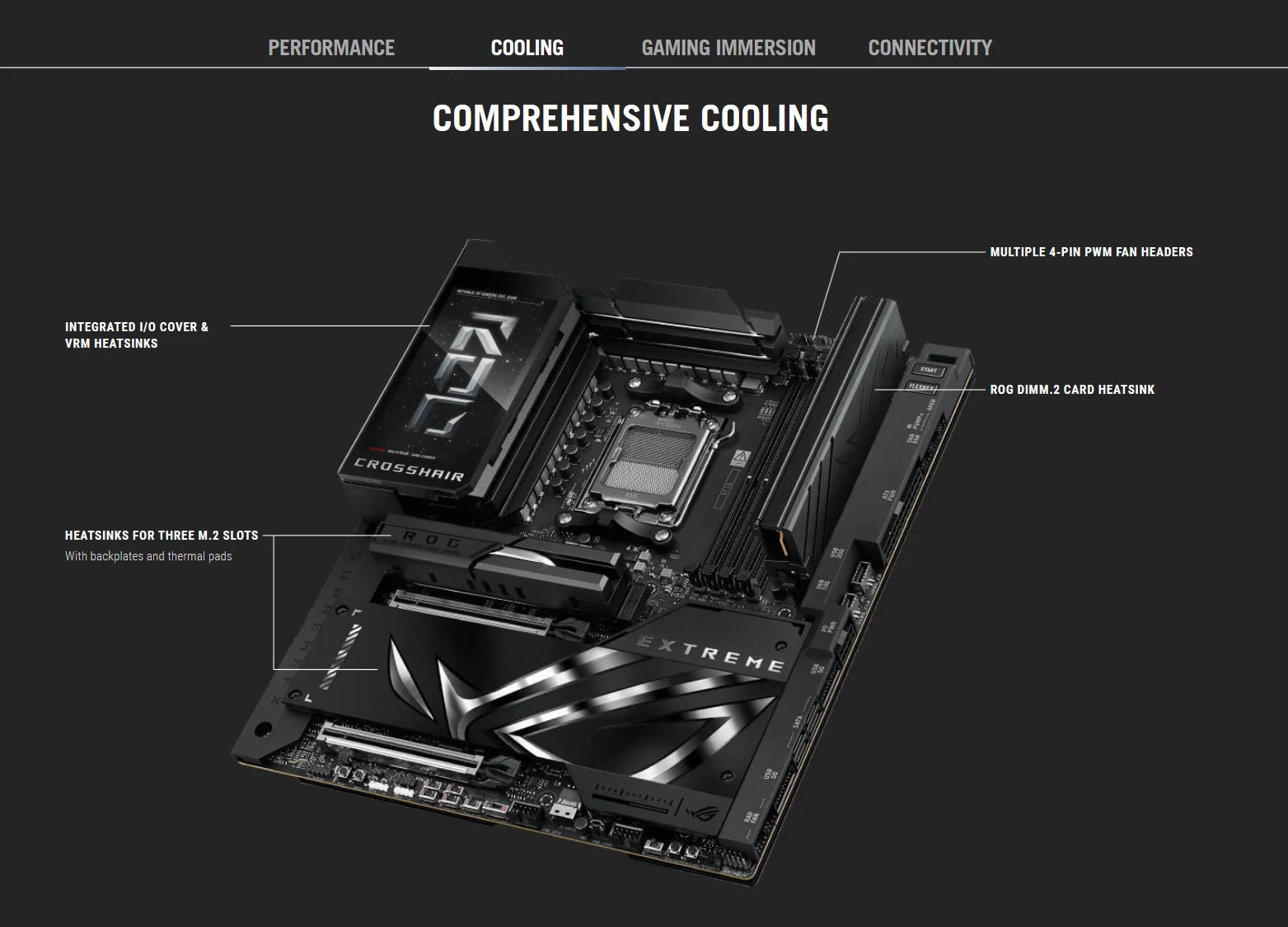

| Cooling | 1 x CPU Fan, 1 x CPU OPT, 2 x Chassis Fan, 2 x Radiator Fan, 2 x W_PUMP+, 1 x VRM Fan |
| Power | 1 x 24-pin, 2 x 8-pin CPU, 1 x 8-pin PCIe |
| USB | 1 x USB 20Gbps (Type-C), 1 x USB 10Gbps (Type-C), 4 x USB 5Gbps, 4 x USB 2.0 |
| Misc | ARGB Gen 2, Q-Code, BIOS Switch, Safe Boot, LN2 Mode, 12 x ProbeIt, Q-Connector |
| Brands | |
|---|---|
| CPU Socket | AM5 |
| AMD Chipset | X870 |
| Form Factor | ATX, EATX |
| RAM Generation | DDR5 |
