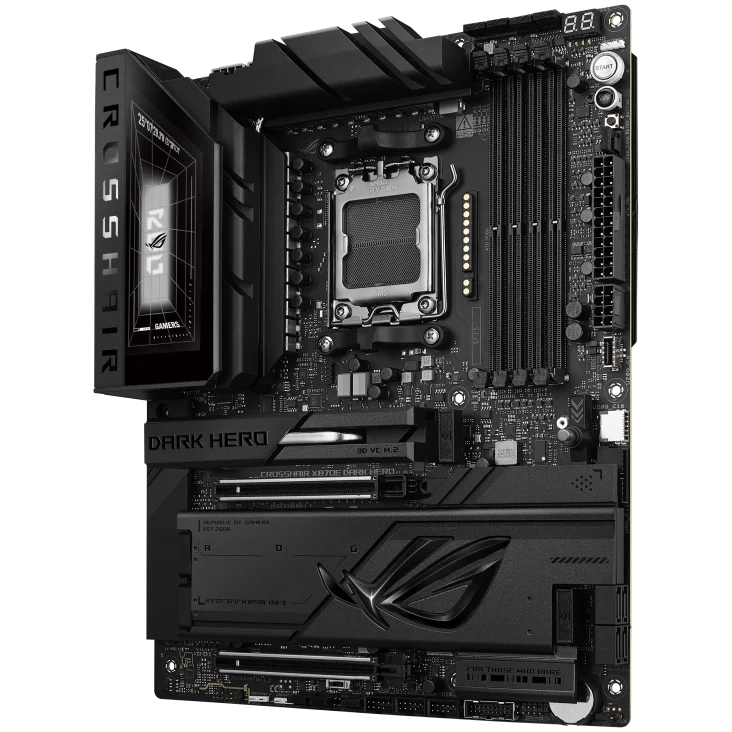

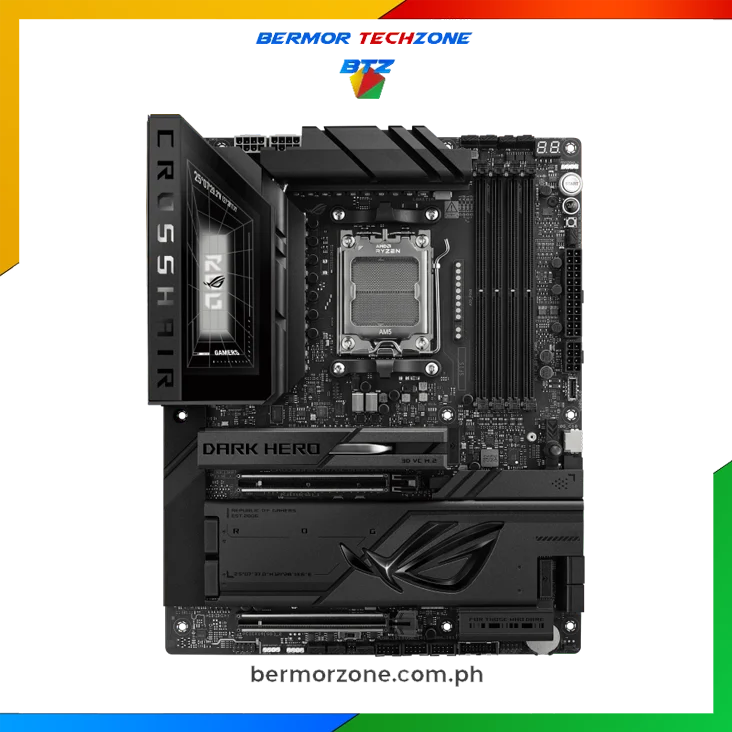

Asus ROG CROSSHAIR X870E DARK HERO AM5 9000 Series ATX Motherboard
Onstock at Online Warehouse
Chipset: AMD X870E
Memory: 4 x DIMM slots, max. 256GB, DDR5
Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*
Wi-Fi 7*
Rear USB (Total 12 ports)
ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
E-ATX Form Factor: 12 inch x 10.9 inch (30.5 cm x 27.7 cm)
₱53,950.00 ₱55,400.00
Estimated Delivery: May 20 - May 25, 2026 (Business Days)
Onstock at Online Warehouse
Check items here that is part of our 99% Same-Day Shipping program displayed with 24 Hours Delivery Banner.
✔ Orders placed before 2:00 PM have the highest chance for same-day shipping or delivery.
✔ Orders after 2:00 PM may still be shipped the same day, but no guarantee.
✔ Applies to items labeled under our 24-hour delivery process.
❗ If your cart includes non-eligible items, your order will follow standard processing.
🚚 Nationwide Coverage:
Orders are shipped out within 24 hours across Luzon, Visayas, and Mindanao, depending on courier and location.
📦 Stock-Based System:
This badge appears only on selected product, showcasing our massive inventory selection ready to ship anytime anywhere.
💳 Payment Note: Fully paid orders are eligible for 24hrs Delivery on Selected Cities. COD orders will only be guaranteed shipped within 24 hours.
🕒 View All 24-Hour Eligible Products
| Chipset | AMD X870E |
| Memory | 4 × DIMM slots, max. 256 GB DDR5
Memory Speed Support (OC): • ECC & Non-ECC Un-buffered DIMM Actual speed and compatibility depend on CPU and memory configuration |
| Graphics | • 1 × HDMI™ port (up to 4K@60Hz, HDMI 2.1) • 2 × USB4® Type-C® ports (DisplayPort output, up to 4K@60Hz DP 1.4a)Available only with CPUs featuring integrated graphics; specifications vary by CPU |
| Expansion Slots | Ryzen™ 9000 / 7000: • 2 × PCIe 5.0 x16 (x16 or x8/x8)Ryzen™ 8700 / 8600 / 8400: • 2 × PCIe 4.0 x16 (x8 total; second slot PCIe 3.0 x4) Ryzen™ 8500 / 8300: Specifications and bifurcation vary by CPU |
| Storage | Total: 5 × M.2 slots, 4 × SATA 6Gb/s
CPU (Ryzen™ 9000 / 7000): CPU (Ryzen™ 8000): Chipset: • 2 × SATA 6Gb/s (Chipset) M.2_2 shares bandwidth with USB4 ports |
| RAID Support | AMD RAIDXpert2 • RAID 0 / 1 / 5 / 10 (NVMe) ASM1162 SATA ports do not support RAID |
| Ethernet | • 1 × Realtek 10Gb Ethernet • 1 × Realtek 5Gb Ethernet • ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (MediaTek MT7927) • 2×2 Wi-Fi 7 (802.11be) • 2.4 / 5 / 6 GHz bands • 320 MHz bandwidth • Bluetooth® 5.4 with LE AudioWi-Fi 7 requires Windows 11 24H2 or later |
| USB (Rear) | Total: 11 Ports • 2 × USB4® 40Gbps (Type-C®) • 6 × USB 10Gbps Type-A • 3 × USB 10Gbps Type-C® |
| USB (Front) | Total: 12 Ports • 2 × USB 20Gbps Type-C® (up to 60W PD/QC4+) • 2 × USB 5Gbps headers (4 ports) • 3 × USB 2.0 headers (6 ports) |
| Audio | ROG SupremeFX 7.1 Surround Sound • ALC4082 CODEC • ESS® ES9219 QUAD DAC • 120 dB SNR playback / 110 dB SNR recording • Gold-plated audio jacks • Optical S/PDIF Out7.1 surround requires front-panel HD audio module |
| Back Panel I/O | 2 × USB4® Type-C® 9 × USB 10Gbps (6 Type-A + 3 Type-C®) 1 × HDMI™ Wi-Fi module 10GbE + 5GbE LAN 2 × audio jacks Optical S/PDIF Out BIOS FlashBack™ button Clear CMOS button |
| Internal I/O Connectors | Cooling: CPU fan, CPU OPT, AIO pump, W_PUMP+, 4 × chassis fan
Power: 24-pin ATX, 2 × 8-pin CPU, 8-pin PCIe Storage: 5 × M.2, 4 × SATA USB: USB 20Gbps, USB 5Gbps, USB 2.0 headers Misc: RGB Gen2 headers, FlexKey, Start/ReTry buttons, thermal sensor, LN2 jumper |
| Special Features | Asynchronous Clock Extreme OC Kit Extreme Engine Digi+ VRM ASUS Q-Design ASUS Thermal Solution ASUS EZ DIY Aura Sync RGB |
| Software Features | Armoury Crate, Aura Sync, Fan Xpert 4 ROG CPU-Z, Dolby Atmos AI Advisor, AIDA64 (1 year) USB Wattage Watcher WinRAR (trial), Adobe CC (trial) |
| BIOS | 64 MB Flash ROM UEFI AMI BIOS |
| Manageability | Wake-on-LAN by PME |
| Accessories | SATA cables, cooling kit, Wi-Fi antenna, Q-Connector, M.2 hardware, ROG accessories |
| Operating System | Windows 11 |
| Form Factor | ATX Form Factor 12 × 9.6 inches (30.5 × 24.4 cm) |
| Brands | |
|---|---|
| CPU Socket | AM5 |
| AMD Chipset | X870 |
| Form Factor | ATX |
| RAM Generation | DDR5 |
