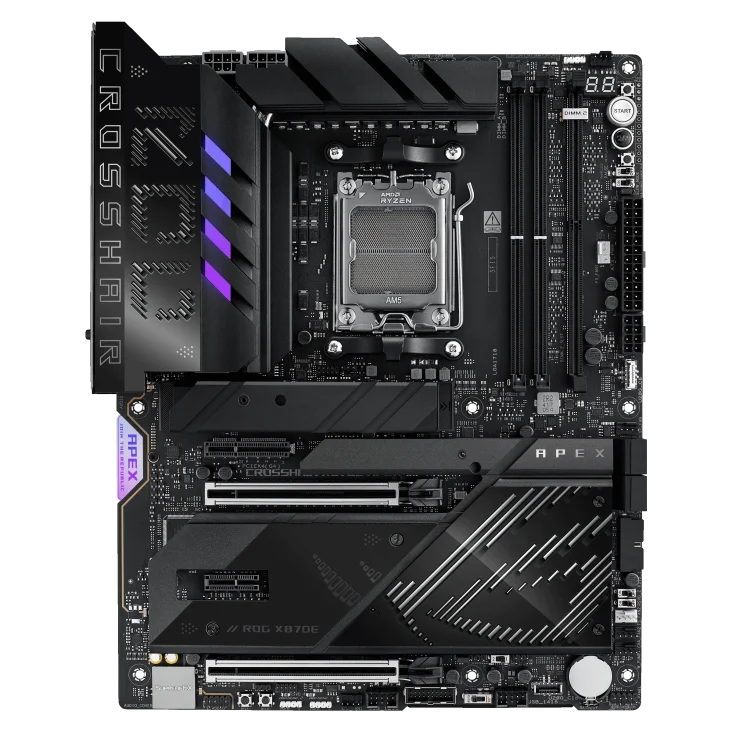

Asus ROG CROSSHAIR X870E APEX AM5 9000 Series ATX Motherboard
Share:
Availability:
Inquire First Before Checkout. Limited or Branch Stock
Chipset: AMD X870E
Memory: 2 x DDR5 DIMM slots, up to 128GB
Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927)*
Rear USB (Total 10 ports)
ROG Exclusive Software
– ROG CPU-Z
– Dolby Atmos
ATX Form Factor: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
₱43,290.00₱46,000.00
6-Month Grace monthly payment:
₱4,363
12-Month Full Interest monthly payment:
₱5,119
Learn more about Billease Installment at Checkout
Estimated Delivery: May 28 - Jun 2, 2026 (Business Days) Message us for Earlier Timeframe Request or Check Products Instock Status for Faster Timeframe
Inquire First Before Checkout. Limited or Branch Stock
⚡ 24-Hour Shipping Eligible – In-Stock & Ready to Ship
Check items here that is part of our 99% Same-Day Shipping program displayed with 24 Hours Delivery Banner.
✔ Orders placed before 2:00 PM have the highest chance for same-day shipping or delivery.
✔ Orders after 2:00 PM may still be shipped the same day, but no guarantee.
✔ Applies to items labeled under our 24-hour delivery process.
❗ If your cart includes non-eligible items, your order will follow standard processing.
🚚 Nationwide Coverage:
Orders are shipped out within 24 hours across Luzon, Visayas, and Mindanao,
depending on courier and location.
📦 Stock-Based System:
This badge appears only on selected product,
showcasing our massive inventory selection ready to ship anytime anywhere.
💳 Payment Note: Fully paid orders are eligible for 24hrs Delivery on Selected Cities.
COD orders will only be guaranteed shipped within 24 hours.

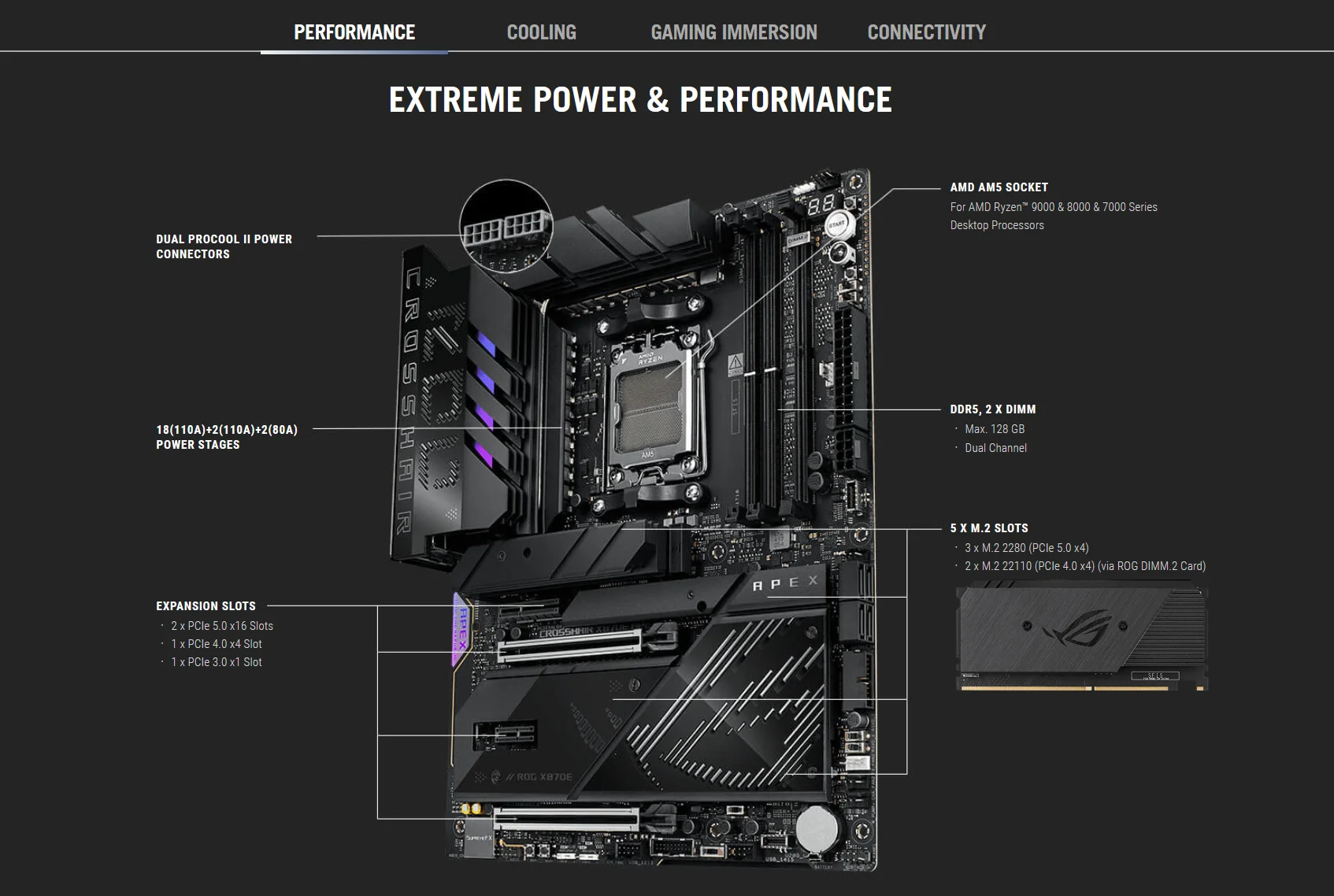

2 x DDR5 DIMM slots, max. 128GB
Up to 8200+ MT/s (OC) with Ryzen 9000
Up to 9600+ MT/s (OC) with Ryzen 8000
Up to 8000+ MT/s (OC) with Ryzen 7000
ECC & Non-ECC un-buffered, Dual channel
EXPO & ASUS AEMP support
Graphics
2 x USB4 (40Gbps) Type-C display outputs (up to 4K@60Hz)
* Display support varies by CPU
Expansion Slots
Ryzen 9000/7000: 2 x PCIe 5.0 x16 (x16/x8/x4 supported)
Ryzen 8000: 2 x PCIe 4.0 x16 (x8 supported)
Ryzen 8500/8300: 2 x PCIe 4.0 x16 (x4 supported)
X870E Chipset: 1 x PCIe 4.0 x4, 1 x PCIe 3.0 x1
Storage
5 x M.2 slots, 4 x SATA 6Gb/s ports
Ryzen 9000/7000: 3 x PCIe 5.0 x4 M.2
Ryzen 8000: 1 x PCIe 4.0 x4 M.2
Chipset: 2 x PCIe 4.0 x4 M.2 (DIMM.2)
RAID: 9000 – RAID 0/1/5/10, 8000 – RAID 0/1, 7000 – RAID 0/1/10
Ethernet
1 x Realtek 5Gb Ethernet with ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 7 (Qualcomm or MediaTek)
2×2 Wi-Fi 7, Bluetooth v5.4
USB (Rear)
2 x USB4 (40Gbps, Type-C)
6 x USB 10Gbps (5 x Type-A + 1 x Type-C)
2 x USB 5Gbps (Type-A)
USB (Front)
1 x USB 20Gbps Type-C (up to 60W PD)
1 x USB 20Gbps Type-C header
4 x USB 5Gbps (via 2 headers)
4 x USB 2.0 (via 2 headers)

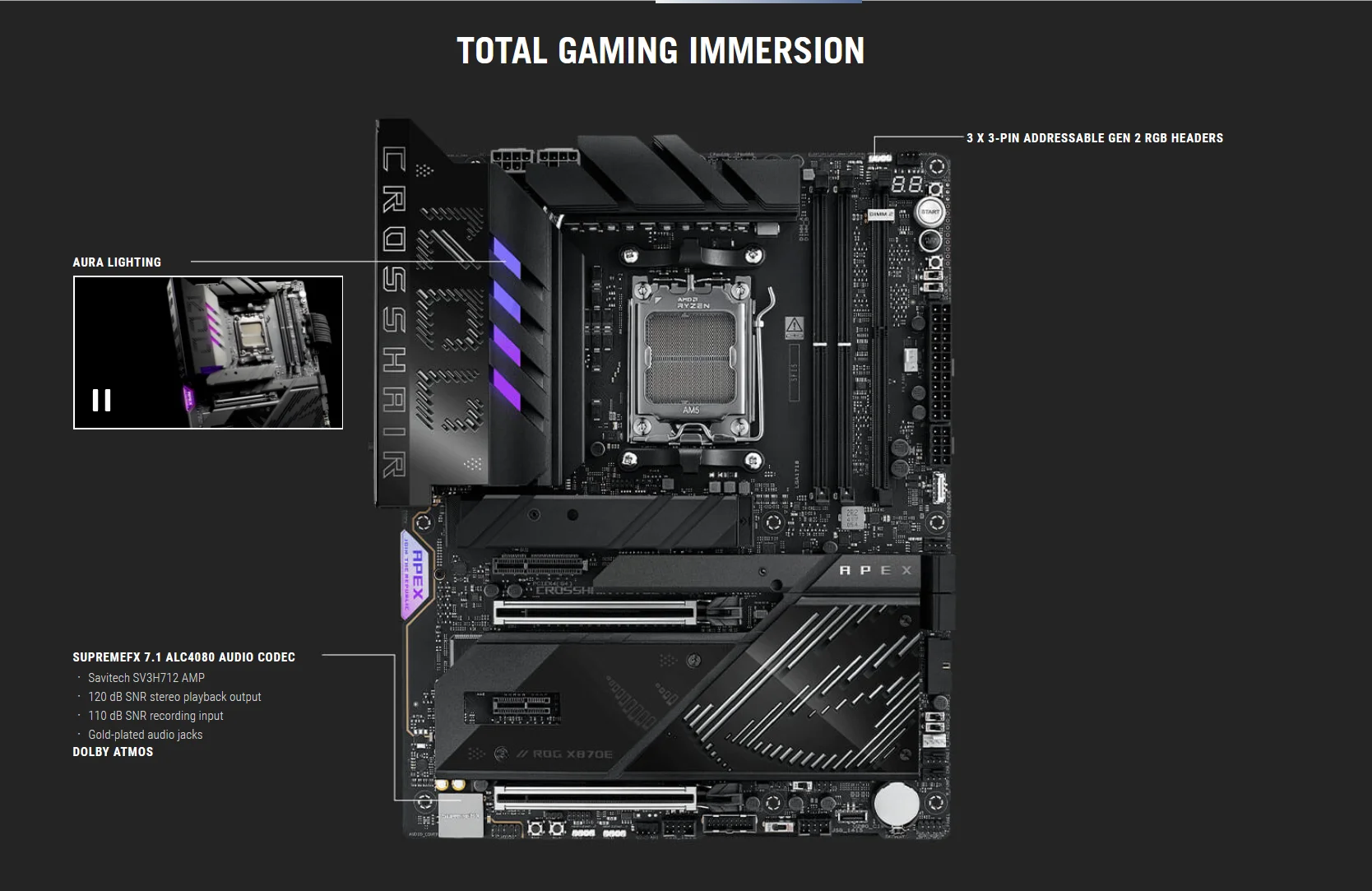

Audio
ROG SupremeFX ALC4080 7.1 Surround Sound
120 dB SNR playback / 110 dB SNR recording
Savitech AMP, Gold-plated jacks, S/PDIF out

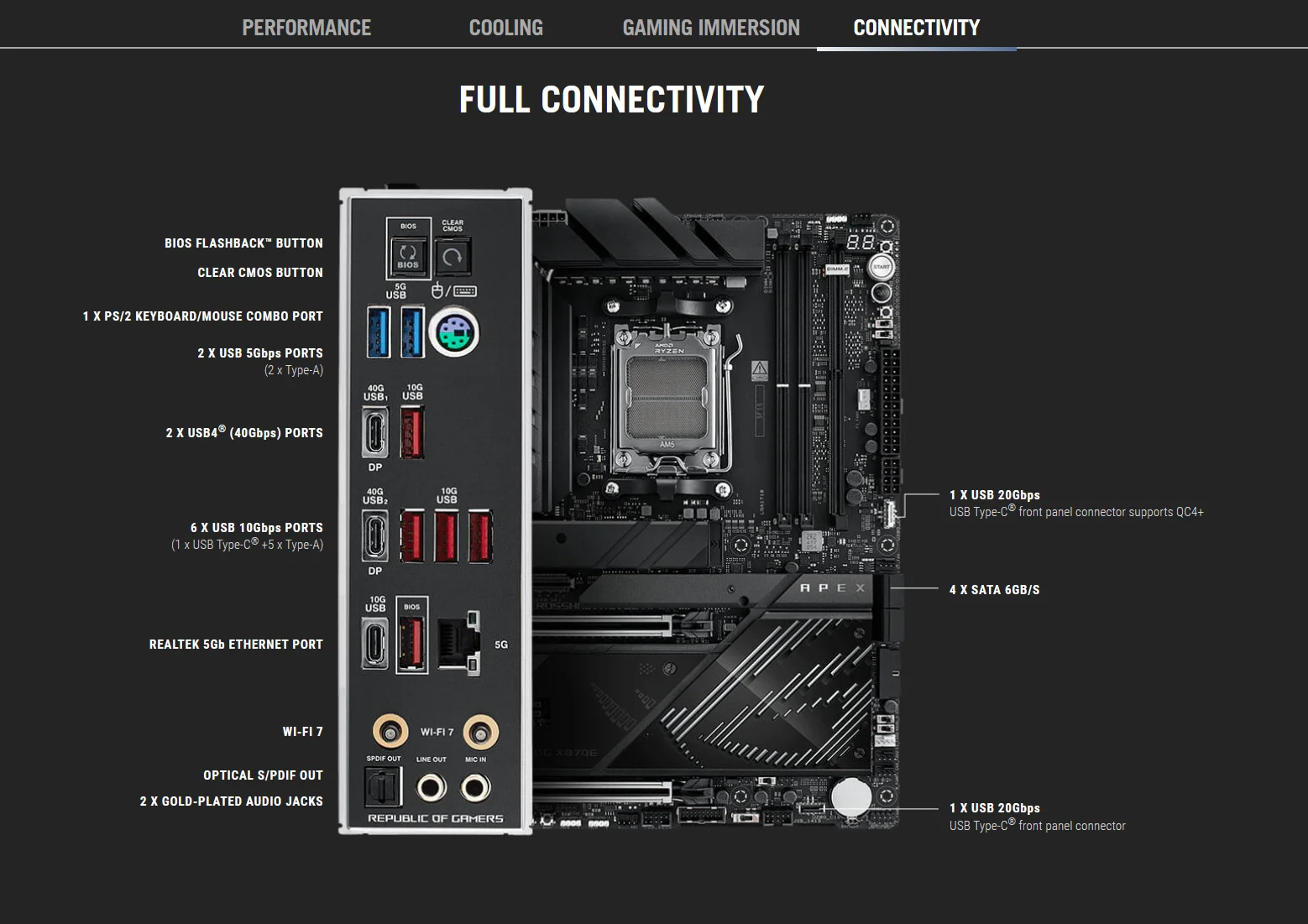

Back Panel I/O
2 x USB4 (Type-C)
6 x USB 10Gbps (5 x A + 1 x C)
2 x USB 5Gbps (Type-A)
Wi-Fi module, 5Gb LAN, PS/2, audio jacks, S/PDIF
BIOS FlashBack, Clear CMOS buttons

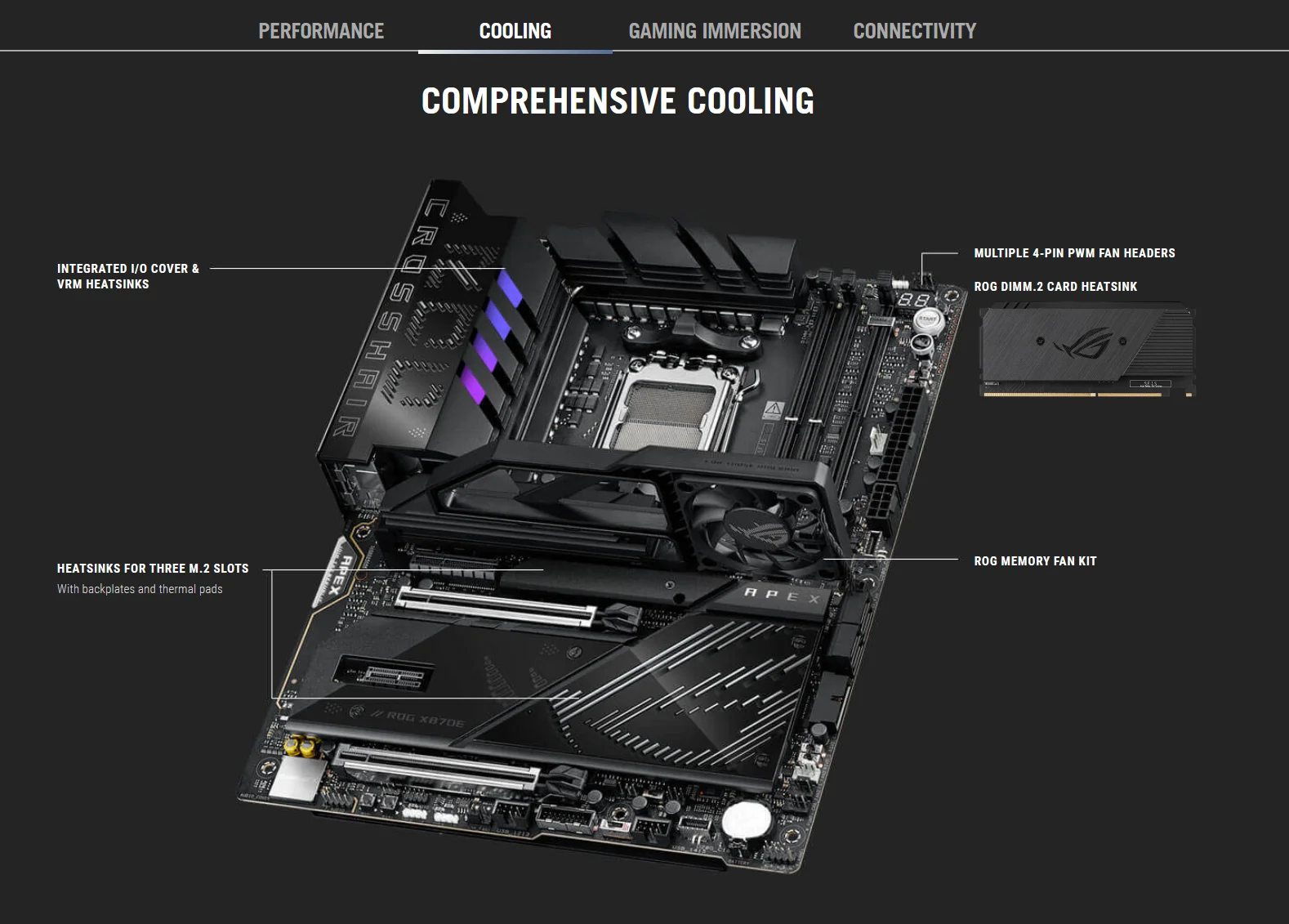

Cooling Headers
1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump
2 x Chassis Fan, 2 x Full Speed Fan
1 x W_PUMP+, 1 x Extra Flow Fan
Power Connectors
1 x 24-pin ATX
2 x 8-pin CPU
1 x 8-pin PCIe (for 60W USB PD)
Special Features
Extreme OC Kit, Q-Design (M.2 Q-Latch, Q-Release Slim, etc.)
Thermal Solutions, EZ DIY (Pre-mounted I/O, BIOS FlashBack)
Front USB 20Gbps w/ Quick Charge 4+ (up to 60W)
Software
Armoury Crate, AI Cooling II, AIDA64 (1yr), Dolby Atmos
ROG CPU-Z, Internet Security (1yr), WinRAR trial
USB Wattage Watcher, Adobe CC trial
Asus ROG CROSSHAIR X870E APEX AM5 9000 Series ATX Motherboard
