AMD Motherboards, Motherboards

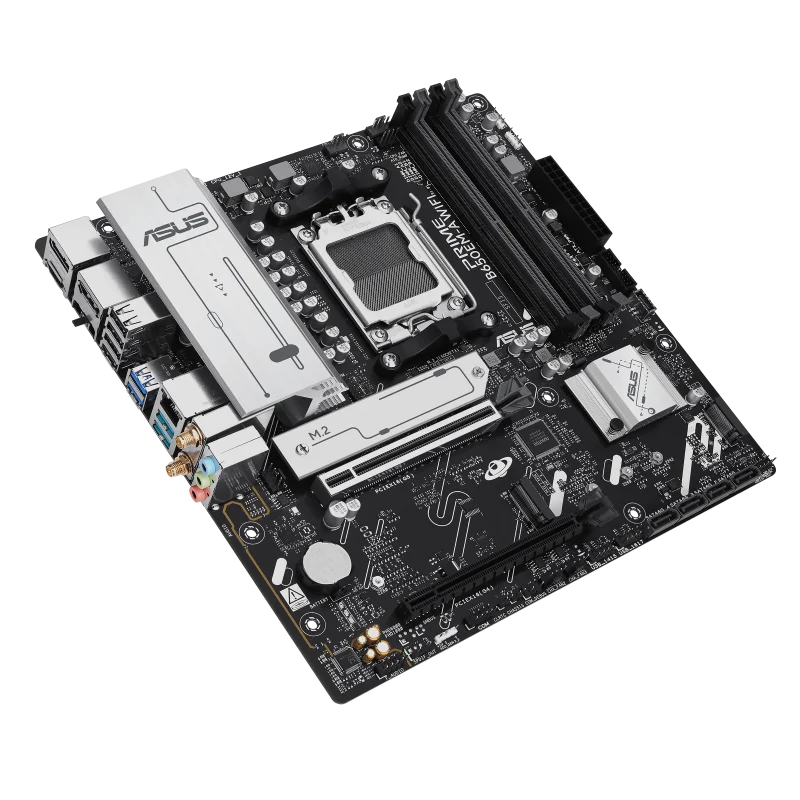

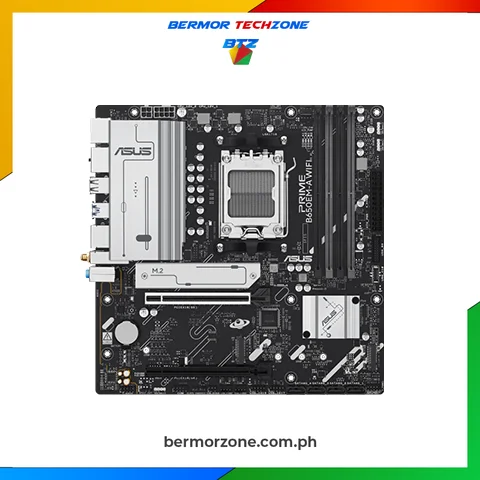

Asus PRIME B650EM-A WIFI AM5 mATX Motherboard
Availability:
Onstock at Online Warehouse
Features
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AM5 Socket for AMD Ryzen™ Desktop Processors
- Ultrafast Connectivity: Wi-Fi 6, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A ports, front USB 5Gbps Type-C® support
- Comprehensive Cooling: VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
₱9,720.00
6-Month Grace monthly payment:
₱980
12-Month Full Interest monthly payment:
₱1,150
Learn more about Billease Installment at Checkout
Estimated Delivery: Jun 15 - Jun 19, 2026 (Business Days)
Onstock at Online Warehouse
⚡ 24-Hour Shipping Eligible – In-Stock & Ready to Ship
Check items here that is part of our 99% Same-Day Shipping program displayed with 24 Hours Delivery Banner.
✔ Orders placed before 2:00 PM have the highest chance for same-day shipping or delivery.
✔ Orders after 2:00 PM may still be shipped the same day, but no guarantee.
✔ Applies to items labeled under our 24-hour delivery process.
❗ If your cart includes non-eligible items, your order will follow standard processing.
🚚 Nationwide Coverage:
Orders are shipped out within 24 hours across Luzon, Visayas, and Mindanao, depending on courier and location.
📦 Stock-Based System:
This badge appears only on selected product, showcasing our massive inventory selection ready to ship anytime anywhere.
💳 Payment Note: Fully paid orders are eligible for 24hrs Delivery on Selected Cities. COD orders will only be guaranteed shipped within 24 hours.
🕒 View All 24-Hour Eligible Products
Check items here that is part of our 99% Same-Day Shipping program displayed with 24 Hours Delivery Banner.
✔ Orders placed before 2:00 PM have the highest chance for same-day shipping or delivery.
✔ Orders after 2:00 PM may still be shipped the same day, but no guarantee.
✔ Applies to items labeled under our 24-hour delivery process.
❗ If your cart includes non-eligible items, your order will follow standard processing.
🚚 Nationwide Coverage:
Orders are shipped out within 24 hours across Luzon, Visayas, and Mindanao, depending on courier and location.
📦 Stock-Based System:
This badge appears only on selected product, showcasing our massive inventory selection ready to ship anytime anywhere.
💳 Payment Note: Fully paid orders are eligible for 24hrs Delivery on Selected Cities. COD orders will only be guaranteed shipped within 24 hours.
🕒 View All 24-Hour Eligible Products
| Category | Specification |
|---|---|
| News & Updates | Visit the ASUS Global website for the latest updates and downloads. |
| CPU Support | AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors* *Refer to ASUS website for CPU support list. |
| Chipset | AMD B650 Chipset |
| Memory | 4 x DIMM slots, up to 256GB DDR5 Supports up to 8000+ MT/s (OC) with Ryzen™ 9000 / 8000 / 7000 Series CPUs Dual-channel architecture Supports AMD EXPO™ and ASUS AEMP Supports ECC & Non-ECC Un-buffered DIMM (On-Die ECC) |
| Graphics | 2 x DisplayPort (max. 8K@30Hz, DP 1.4) 1 x HDMI™ port (4K@60Hz, HDMI 2.1) *Graphics support varies by CPU. |
| Expansion Slots | For Ryzen™ 9000 & 7000: 1 x PCIe 5.0 x16 (x16 mode)
For Ryzen™ 8000: 1 x PCIe 4.0 x16 (x8/x4 mode) Chipset: 1 x PCIe 4.0 x16 (x1 mode) |
| Storage | Total: 3 x M.2 slots + 4 x SATA 6Gb/s ports
Ryzen™ 9000 & 7000: M.2_1 (PCIe 5.0 x4), M.2_2 (PCIe 4.0 x4) Ryzen™ 8000: M.2_1 (PCIe 4.0 x4), M.2_2 (PCIe 4.0 x4/x2) Chipset: M.2_3 (PCIe 4.0 x4, 2242/2260/2280) |
| RAID Support | AMD RAIDXpert2 Technology Ryzen™ 9000: RAID 0/1/5/10 Ryzen™ 8000: RAID 0/1 Ryzen™ 7000: RAID 0/1/10 |
| Ethernet | Realtek 2.5Gb Ethernet with ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4GHz / 5GHz Bluetooth® v5.4* (*Version may vary) |
| USB Ports | Rear (8 total): 2 x USB 10Gbps (Type-A), 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A)
Front (7 total): 1 x USB 5Gbps Type-C®, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) *Type-C® PD output: Max 5V/3A |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking Up to 24-bit / 192 kHz playback Features: Audio shielding, Premium capacitors, Dedicated PCB layers |
| Back Panel I/O | 2 x USB 10Gbps (Type-A) 2 x USB 5Gbps (Type-A) 4 x USB 2.0 (Type-A) 2 x DisplayPort 1 x HDMI™ 1 x Wi-Fi module 1 x Realtek 2.5Gb LAN 3 x Audio jacks 1 x BIOS FlashBack™ button |
| Internal I/O | Cooling: 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 3 x Chassis Fan headers
Power: 1 x 24-pin ATX, 1 x 8-pin +12V, 1 x 4-pin +12V Storage: 3 x M.2, 4 x SATA 6Gb/s USB: 1 x USB 5Gbps Type-C®, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) Misc: 3 x ARGB Gen 2 headers, Clear CMOS, Chassis Intrusion, COM, Front Audio, S/PDIF Out, SPI TPM, Front Panel header |
| Special Features | ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot, Stainless-steel I/O
Q-Design: Q-DIMM, Q-LED Core, Q-Slot Thermal: M.2 & VRM heatsinks EZ DIY: BIOS FlashBack™ button & LED Aura Sync: 3 x Addressable RGB Gen 2 headers |
| Software Features | ASUS Exclusive: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, AI Noise Cancelation) AI Suite 3 (TurboV EVO, DIGI+ VRM, PC Cleaner) ASUS DriverHub, ASUS CPU-Z
Trial Software: Adobe Creative Cloud, Norton 360 Deluxe (60 days), WinRAR (40 days) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS ASUS CrashFree BIOS 3, EZ Flash 3, UEFI EZ Mode |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA cables, ASUS Wi-Fi moving antenna, I/O shield, M.2 rubber package, M.2 screw set, Quick start guide |
| Operating System | Windows® 11 / Windows® 10 64-bit |
| Form Factor | mATX (24.4 cm x 24.4 cm / 9.6″ x 9.6″) |
| Brands | |
|---|---|
| AMD Chipset | B650 |
| Form Factor | MATX |
| RAM Generation | DDR5 |
