ASRock Phantom Gaming B850I Lightning WiFi DDR5 Mini ITX Motherboard
Availability:
Out of Stock. Check Counterpart Models
- PCIe Gen5 Support: Delivers ultra-fast data speeds for both graphics cards and NVMe SSDs via Gen5 x16 and Gen5 x4 M.2 slots.
- Robust Power Delivery: Features a 10+1+1 phase power design with 110A SPS and enlarged heatsink armor for enhanced thermal performance and system stability.
- High-Speed Connectivity: Equipped with Killer 2.5G LAN and Wi-Fi 6E (802.11axe) for low-latency gaming and next-gen wireless performance.
- Comprehensive USB Options: Offers a wide range of USB ports including USB 3.2 Gen2 Type-C with DP-alt mode and up to 40Gbps support (CPU dependent).
- Compact Yet Powerful: Mini-ITX form factor with dual DDR5 support (up to 128GB), integrated I/O shield, and ASRock Lightning Gaming Ports for space-saving performance builds.
₱13,350.00
6-Month Grace monthly payment:
₱1,346
12-Month Full Interest monthly payment:
₱1,579
Learn more about Billease Installment at Checkout
Out of Stock. Check Counterpart Models
Want to be Notified upon Restock
We will inform you when the product toggled in stock. Please leave your valid email address below.
Add to WishlistAlready In Wishlist
Add to Wishlist
| Category | Specification |
|---|---|
| Product Highlights | – PCIe Gen5 (Graphics & M.2)
– Dual Channel DDR5 – 10+1+1 Power Phase, 110A SPS – Enlarged Heatsink Armor – Integrated I/O Shield |
| – Killer 2.5G LAN, Wi-Fi 6E (802.11axe)
– ASRock Lightning Gaming Ports – BIOS Flashback Button – ASRock Auto Driver Installer |
|
| CPU Support | AMD Socket AM5 Ryzen™ 9000 / 8000 / 7000 Series Processors* *PCIe/M.2 bandwidth varies by CPU |
| Chipset | AMD B850 |
| Memory | – 2 x DDR5 DIMM Slots (Dual Channel)
– Up to 128GB – Supports DDR5 8200+(OC), ECC/non-ECC, un-buffered – XMP & EXPO Support |
| Graphics | Integrated AMD RDNA™ Graphics (varies by CPU)
– 1 x HDMI 2.1 (4K@120Hz) – 1 x USB-C (DP 1.4, 4K@60Hz, DP-alt mode) |
| Audio | Realtek ALC1220 7.1 CH HD Audio
– Impedance Sensing – Nahimic Audio – Independent PCB Layers (L/R Audio Channels) |
| LAN | Killer E3100G 2.5GbE LAN
– Killer LAN Software |
| Wireless | Wi-Fi 6E (802.11axe, Dual-Band 2×2, 6GHz band*)
– Bluetooth 5.2 – MU-MIMO Support *6GHz requires Windows 11 & region support |
| Expansion Slots | – 1 x PCIe 5.0 x16 (CPU)
– 1 x Vertical M.2 (Key E) for Wi-Fi/BT Module |
| Storage | CPU: – 1 x M.2 Gen5x4 (M2_1, 2280)
Chipset: – 1 x M.2 Gen4x4 (M2_2, 2280) – 2 x SATA3 6Gb/s |
| RAID | – SATA: RAID 0, 1 – M.2 NVMe: RAID 0, 1, 10* *RAID 10 requires additional M.2 cards |
| USB Ports | CPU: – 1 x USB 3.2 Gen2 Type-C (Rear) – 2 x USB 3.2 Gen2 Type-A (Rear)
Chipset: – 1 x USB 3.2 Gen1 Type-C (Front) |
| – 3 x USB 3.2 Gen1 Type-A (1 Rear, 2 Front) – 6 x USB 2.0 (4 Rear, 2 Front) | |
| Internal Connectors | – 1 x 24-pin ATX Power – 1 x 8-pin 12V CPU Power (Hi-Density) – 1 x Thermistor Header – 2 x Addressable LED Headers (5V/3A) |
| – 1 x CPU Fan (4-pin, 3A) – 1 x Chassis Fan (4-pin, 3A) – 1 x AIO Pump Fan (4-pin, 3A) – USB 2.0 / 3.2 Gen1 / Type-C Front Headers | |

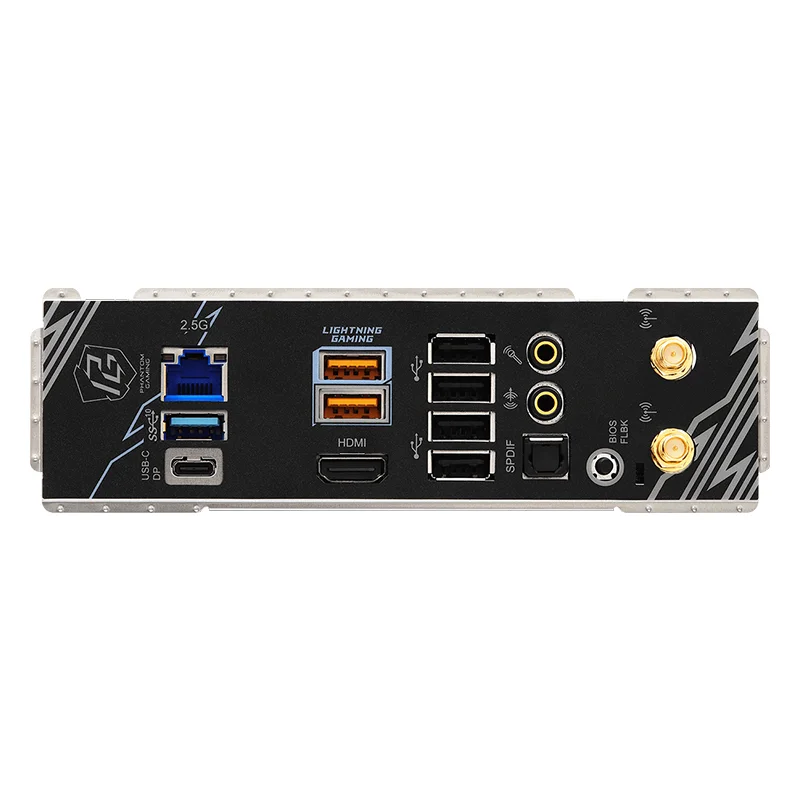

| Rear I/O Ports | – 2 x Antenna Ports – 1 x HDMI – 1 x Optical SPDIF Out – 2 x USB 3.2 Gen2 Type-A – 1 x USB 3.2 Gen2 Type-C (DP-alt, up to 40Gbps) |
| – 1 x USB 3.2 Gen1 Type-A – 4 x USB 2.0 – 1 x RJ-45 LAN – 1 x BIOS Flashback Button – 1 x Line Out (Gold) – 1 x Mic In (Gold) | |
| BIOS | 256Mb AMI UEFI BIOS – EZ Mode, Full HD GUI – Instant Flash – Auto Driver Installer |
| Software | – ASRock Phantom Gaming Tuning – Killer Control Center – ASRock Polychrome SYNC* |
| *Available via ASRock Live Update & APP Shop | |
| Accessories | – 2 x SATA Data Cables – 2 x Wi-Fi Antennas – 2 x M.2 Screws – 1 x Thermistor Cable |
| Form Factor | Mini-ITX (6.7″ x 6.7″, 17 x 17 cm), 8-layer PCB |
| OS Support | Windows® 10 64-bit / Windows® 11 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready (with compatible PSU) |
| Brands | |
|---|---|
| AMD Chipset | B850 |
| Form Factor | ITX |
| RAM Generation | DDR5 |
| CPU Socket | AM5 |
