ASRock B850 LiveMixer WiFi AM5 ATX Motherboard
Availability:
Out of Stock. Check Counterpart Models
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC+MISC
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 8000+ (OC) - 1 PCIe 5.0 x16, 2 PCIe 4.0 x16
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
2 SATA3 - 1 USB 3.2 Gen2x2 Type-C (Front)
1 USB 3.2 Gen2 Type-C (Rear)
1 USB 3.2 Gen2 Type-A (Rear)
8 USB 3.2 Gen1 (4 Rear, 4 Front)
12 USB 2.0 (8 Rear, 4 Front) - Realtek 2.5G LAN
- 802.11be WiFi 7 +Bluetooth
- Supports M.2 Bottom Heatsink,
BIOS Flashback
₱12,895.00 ₱15,000.00
6-Month Grace monthly payment:
₱1,300
12-Month Full Interest monthly payment:
₱1,525
Learn more about Billease Installment at Checkout
Out of Stock. Check Counterpart Models
Want to be Notified upon Restock
We will inform you when the product toggled in stock. Please leave your valid email address below.
Add to WishlistAlready In Wishlist
Add to Wishlist
| Unique Features | Superb Productivity: PCIe Gen5 (Graphics, M.2), Dual Channel DDR5 Rock-Solid Durability: 14+2+1 Power Phase (80A Dr.MOS), Enlarged Heatsink Armor, Integrated I/O Shield, 20K Black Caps Ultrafast Connectivity: 2.5G LAN, Wi-Fi 7 (802.11be), Lightning Gaming Ports EZ Update: BIOS Flashback Button, Auto Driver Installer EZ Troubleshooter: Post Status Checker |
| CPU Support | AMD Socket AM5 Ryzen™ 9000 / 8000 / 7000 Series Processors* |
| Chipset | AMD B850 |
| Memory | 4× DDR5 DIMM, Dual Channel, up to DDR5 8000+(OC), ECC/Non-ECC, Max 256GB Supports XMP & EXPO |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI |
| Graphics (iGPU) | Integrated AMD RDNA™ (depends on CPU) 1× HDMI 2.1 (4K@120Hz, HDR, HDCP 2.3) 1× DisplayPort 1.4 (4K@120Hz, HDR, DSC, HDCP 2.3) |
| Audio | Realtek ALC1220, 7.1 CH HD Audio, Nahimic Audio, Impedance Sensing, Isolated PCB Layers |
| LAN | 2.5GbE (Dragon RTL8125BG), with Smart Bandwidth Control & Gaming Mode |
| Wireless | Wi-Fi 7 (802.11be, 2×2, 2.4/5/6GHz, 160MHz bandwidth) Bluetooth 5.4, MU-MIMO |
| Expansion Slots | 1× PCIe 5.0 x16 (CPU) 2× PCIe 4.0 x16 (Chipset, x4 mode) 1× M.2 (Key E) for Wi-Fi/BT 15μ Gold VGA PCIe Slot |
| Storage | 1× M.2 Gen5x4 (CPU) 1× M.2 Gen4x4 (CPU) 1× M.2 Gen4x4 (Chipset) 2× SATA 6Gb/s Supports RAID 0/1 (SATA), RAID 0/1/10 (NVMe)* |
| USB Ports | Rear: 1× USB 3.2 Gen2 Type-C, 1× USB 3.2 Gen2 Type-A, 1× USB 3.2 Gen1, 3× USB 3.2 Gen1, 8× USB 2.0 Front: 1× USB 3.2 Gen2x2 Type-C, 4× USB 3.2 Gen1, 4× USB 2.0 |
| Internal Connectors | 1× SPI TPM, 1× Thermistor, RGB/ARGB headers (1×12V, 3×5V), 2× CPU Fan, 3× Chassis Fan, 1× AIO Pump, 24-pin ATX, 8-pin + 4-pin CPU Power, Front Audio, USB headers (2× USB 2.0, 2× USB 3.2 Gen1, 1× USB 3.2 Gen2x2) |

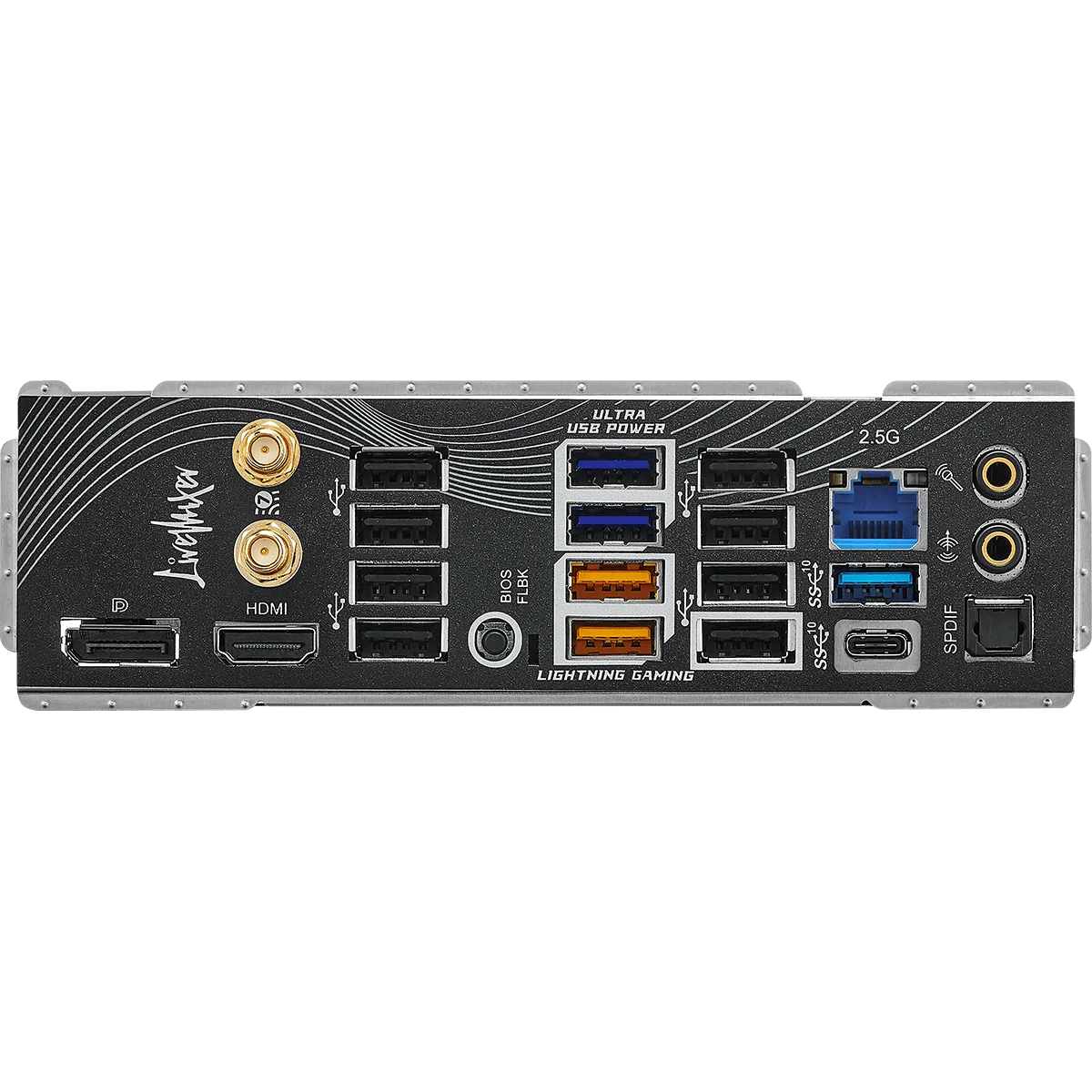

| Rear I/O | 2× Antenna Ports, 1× HDMI, 1× DP, 1× Optical SPDIF, 1× USB-C (10Gb/s), 1× USB-A (10Gb/s), 4× USB 3.2 Gen1, 8× USB 2.0, 1× RJ-45 LAN, BIOS Flashback Button, Line Out, Mic In |
| Software | ASRock A-Tuning, Dragon 2.5G LAN Software, Polychrome SYNC |
| UEFI | EZ Mode, Full HD UEFI, Auto Driver Installer, Instant Flash |
| Accessories | 2× SATA cables, 2× Wi-Fi antennas, 1× Thermistor cable |
| Form Factor | ATX (12.0″ × 9.6″), 8 Layer PCB |
| OS Support | Windows® 10 (64-bit) / 11 (64-bit) |
| Certifications | FCC, CE, ErP/EuP ready |
| Brands | |
|---|---|
| AMD Chipset | B850 |
| Form Factor | ATX |
