AMD Motherboards, Motherboards

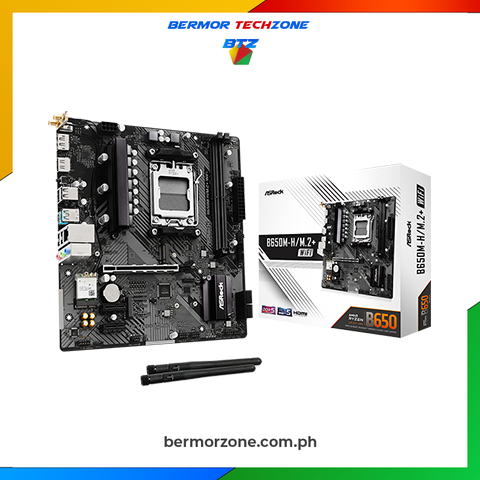

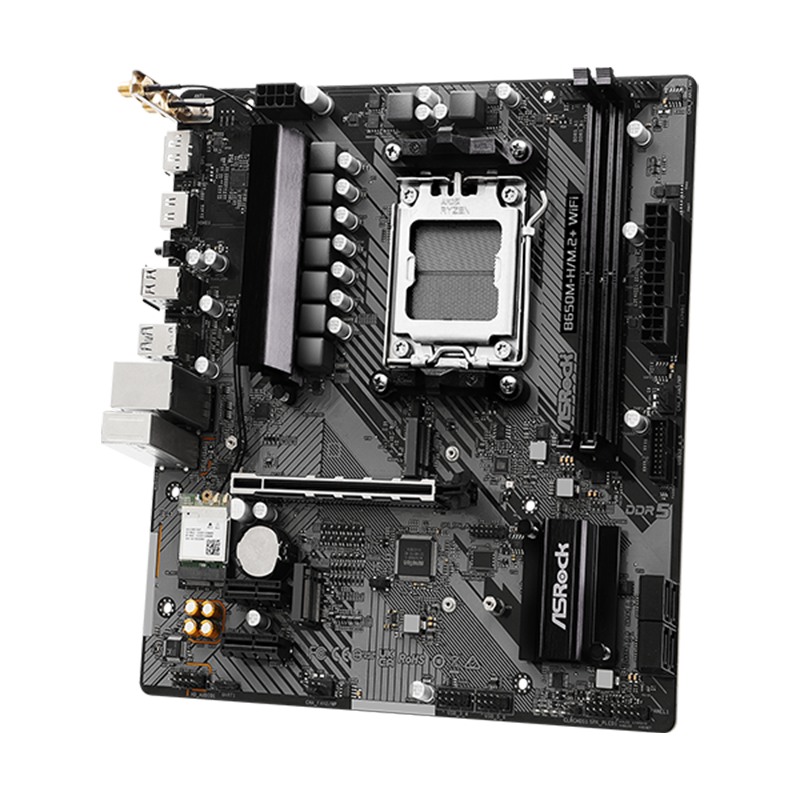

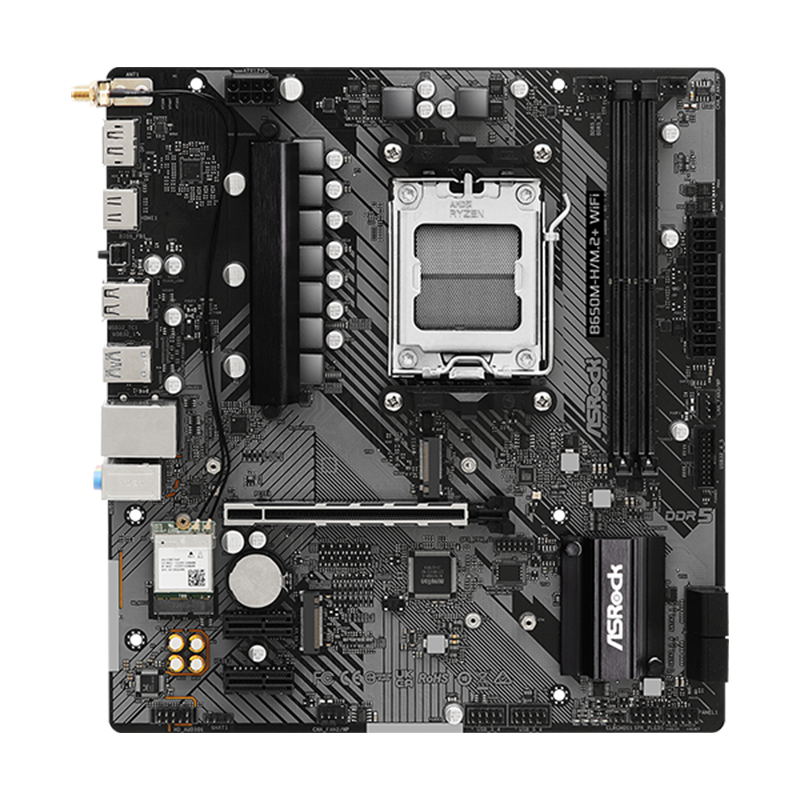

Asrock B650M-H/M.2+ WiFi Micro DDR5 mATX AM5 Motherboard
Availability:
Onstock at Online Warehouse
Features
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- 6+1+1 Power Phase, Dr.MOS
- 2 x DDR5 DIMMs
Supports Dual Channel, up to 6400+ (OC) - 1 PCIe 4.0 x16, 2 PCIe 4.0 x1
- Integrated AMD RDNA™ 2 Graphics *
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3
1 Blazing M.2 (PCIe Gen5x4)
1 Hyper M.2 (PCIe Gen4x4) - 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
6 USB 2.0 (2 Rear, 4 Front) - Realtek Gigabit LAN
- 802.11ac Wi-Fi 5 + Bluetooth
₱6,950.00
6-Month Grace monthly payment:
₱701
12-Month Full Interest monthly payment:
₱822
Learn more about Billease Installment at Checkout
Estimated Delivery: Jun 11 - Jun 16, 2026 (Business Days)
Onstock at Online Warehouse
⚡ 24-Hour Shipping Eligible – In-Stock & Ready to Ship
Check items here that is part of our 99% Same-Day Shipping program displayed with 24 Hours Delivery Banner.
✔ Orders placed before 2:00 PM have the highest chance for same-day shipping or delivery.
✔ Orders after 2:00 PM may still be shipped the same day, but no guarantee.
✔ Applies to items labeled under our 24-hour delivery process.
❗ If your cart includes non-eligible items, your order will follow standard processing.
🚚 Nationwide Coverage:
Orders are shipped out within 24 hours across Luzon, Visayas, and Mindanao, depending on courier and location.
📦 Stock-Based System:
This badge appears only on selected product, showcasing our massive inventory selection ready to ship anytime anywhere.
💳 Payment Note: Fully paid orders are eligible for 24hrs Delivery on Selected Cities. COD orders will only be guaranteed shipped within 24 hours.
🕒 View All 24-Hour Eligible Products
Check items here that is part of our 99% Same-Day Shipping program displayed with 24 Hours Delivery Banner.
✔ Orders placed before 2:00 PM have the highest chance for same-day shipping or delivery.
✔ Orders after 2:00 PM may still be shipped the same day, but no guarantee.
✔ Applies to items labeled under our 24-hour delivery process.
❗ If your cart includes non-eligible items, your order will follow standard processing.
🚚 Nationwide Coverage:
Orders are shipped out within 24 hours across Luzon, Visayas, and Mindanao, depending on courier and location.
📦 Stock-Based System:
This badge appears only on selected product, showcasing our massive inventory selection ready to ship anytime anywhere.
💳 Payment Note: Fully paid orders are eligible for 24hrs Delivery on Selected Cities. COD orders will only be guaranteed shipped within 24 hours.
🕒 View All 24-Hour Eligible Products
| Category | Details |
|---|---|
| Unique Features | Superb Productivity– PCIe Gen5 (M.2)- Dual Channel DDR5
Rock-Solid Durability– 6+1+1 Power Phase, 50A Dr.MOS for VCore Ultrafast Gaming– 802.11ac Wi-Fi Module EZ Update– BIOS Flashback Button- ASRock Auto Driver Installer EZ Troubleshooter– ASRock Post Status Checker |
| CPU | – Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors**The availability of expansion slots may vary by CPU. Refer to PCIe/M.2 Bandwidth Table for details. |
| Chipset | AMD B650 |
| Memory | – Dual Channel DDR5 Memory Technology- 2 x DDR5 DIMM Slots- Supports DDR5 ECC/non-ECC, un-buffered memory up to 6400+(OC)– Max. capacity: 128GB– Supports XMP and EXPO memory modules**For 32-bit OS, usable memory <4GB due to system reservation. No such limitation for 64-bit OS. |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ Graphics (support varies by CPU)- 1 x HDMI 2.1 TMDS/FRL 8G Compatible (HDR, HDCP 2.3, up to 4K 120Hz)- 1 x DisplayPort 1.4 with DSC (HDCP 2.3, up to 4K 120Hz) |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Codec)- Nahimic Audio |
| LAN | – Realtek RTL8111H- Gigabit LAN 10/100/1000 Mb/s |
| Wireless LAN | – 802.11ac Wi-Fi Module- IEEE 802.11a/b/g/n/ac- Dual-Band (2.4/5 GHz), up to 433 Mbps- Bluetooth 5.0 |
| Slots | CPU:– 1 x PCIe 4.0 x16 Slot (x16 mode)*Chipset:– 2 x PCIe 4.0 x1 Slots- 1 x M.2 (Key E) for Wi-Fi/BT module- 15μ Gold Contact in PCIe x16 Slot*Supports NVMe SSD as boot disks |
| Storage | CPU:– 1 x Blazing M.2 (M2_1, PCIe Gen5x4, 2280)– 1 x Hyper M.2 (M2_2, PCIe Gen4x4, 2260/2280)Chipset:– 4 x SATA3 6.0 Gb/s Connectors*Supports NVMe SSD boot |
| RAID | – RAID 0, 1, 10 for SATA devices- RAID 0, 1, 10 for M.2 NVMe devices**RAID 10 requires additional M.2 NVMe cards |
| USB | – 1 x USB 3.2 Gen1 Type-C (Rear)- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)- 6 x USB 2.0 (2 Rear, 4 Front)*All USB ports support ESD Protection |
| Connectors | – 1 x SPI TPM Header- 1 x Power LED & Speaker Header- 1 x CPU Fan (4-pin, up to 1A)- 3 x Chassis/Water Pump Fan (4-pin, Smart Fan Control, up to 2A)**- 1 x 24-pin ATX Power- 1 x 8-pin 12V Power- 1 x Front Panel Audio- 2 x USB 2.0 Headers (4 ports)- 1 x USB 3.2 Gen1 Header (2 ports)**Auto-detects 3-pin/4-pin fans |

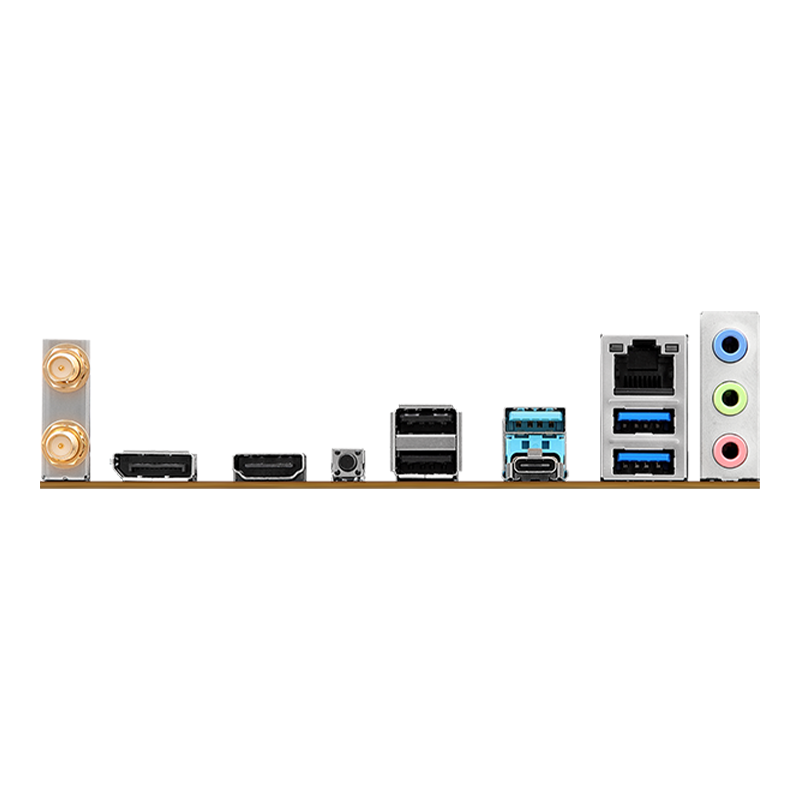

| Rear I/O | – 2 x Antenna Ports- 1 x HDMI- 1 x DisplayPort 1.4- 1 x USB 3.2 Gen1 Type-C- 3 x USB 3.2 Gen1 Type-A- 2 x USB 2.0- 1 x RJ-45 LAN- 1 x BIOS Flashback Button- HD Audio Jacks (Line In / Front Speaker / Mic) |
| Software and UEFI | Software:– ASRock Motherboard Utility (A-Tuning)*UEFI:– ASRock Full HD UEFI- ASRock Auto Driver Installer- ASRock Instant Flash*Available via ASRock Live Update & APP Shop |
| Accessories | – 1 x I/O Shield- 2 x Wi-Fi 2.4/5GHz Antennas- 2 x SATA Data Cables- 2 x M.2 Screws |
| Form Factor | Micro ATX, 9.6″ x 8.9″ (24.4 cm x 22.6 cm) |
| Operating System | Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications | – FCC, CE- ErP/EuP Ready (requires ErP/EuP ready PSU) |
| Brands | |
|---|---|
| AMD Chipset | B650 |
| Form Factor | MATX |
| RAM Generation | DDR5 |
