– 4 x DDR4 DIMM Slots, Dual Channel
– Supports ECC* & non-ECC, un-buffered
– Max Capacity: 128GB
– AMD Ryzen CPU/APU specific OC frequencies supported (up to 4733+ MHz)
– Supports Extreme Memory Profile (XMP)
BIOS
128Mb AMI UEFI Legal BIOS with GUI
Integrated Graphics
– AMD Radeon™ Vega (in supported APUs)
– 1 x HDMI 2.1: up to 4K @ 60Hz
– 1 x DisplayPort 1.4: up to 5K @ 120Hz
Audio
7.1 CH HD Audio (Realtek ALC897 Codec)
LAN
– 2.5G LAN (Dragon RTL8125BG)
– Dragon 2.5G LAN Software
– Smart Bandwidth Control, Optimized Game/Browsing/Streaming Modes
Expansion Slots
Ryzen CPUs (Vermeer/Matisse):
– 2 x PCIe x16 (Gen4 x16 / Gen3 x4)
– 1 x PCIe 3.0 x1 Ryzen APUs (Cezanne/Renoir/Picasso):
– Varies: up to Gen3x8 mode
– AMD CrossFire™ support
Storage
– CPU: 1 x Hyper M.2 (Gen4x4 / Gen3x4)
– Chipset: 1 x M.2 (SATA3 & PCIe Gen3x2)
– 4 x SATA3 6Gb/s
– NVMe boot support (except Athlon 3000G)
RAID Support
RAID 0, 1, 10 (for SATA devices)
USB Ports
CPU:
– 4 x USB 3.2 Gen1 Type-A Chipset:
– 2 x USB 3.2 Gen1 Type-A
– 6 x USB 2.0 (2 Rear, 4 Front)
– All USB ports with ESD Protection

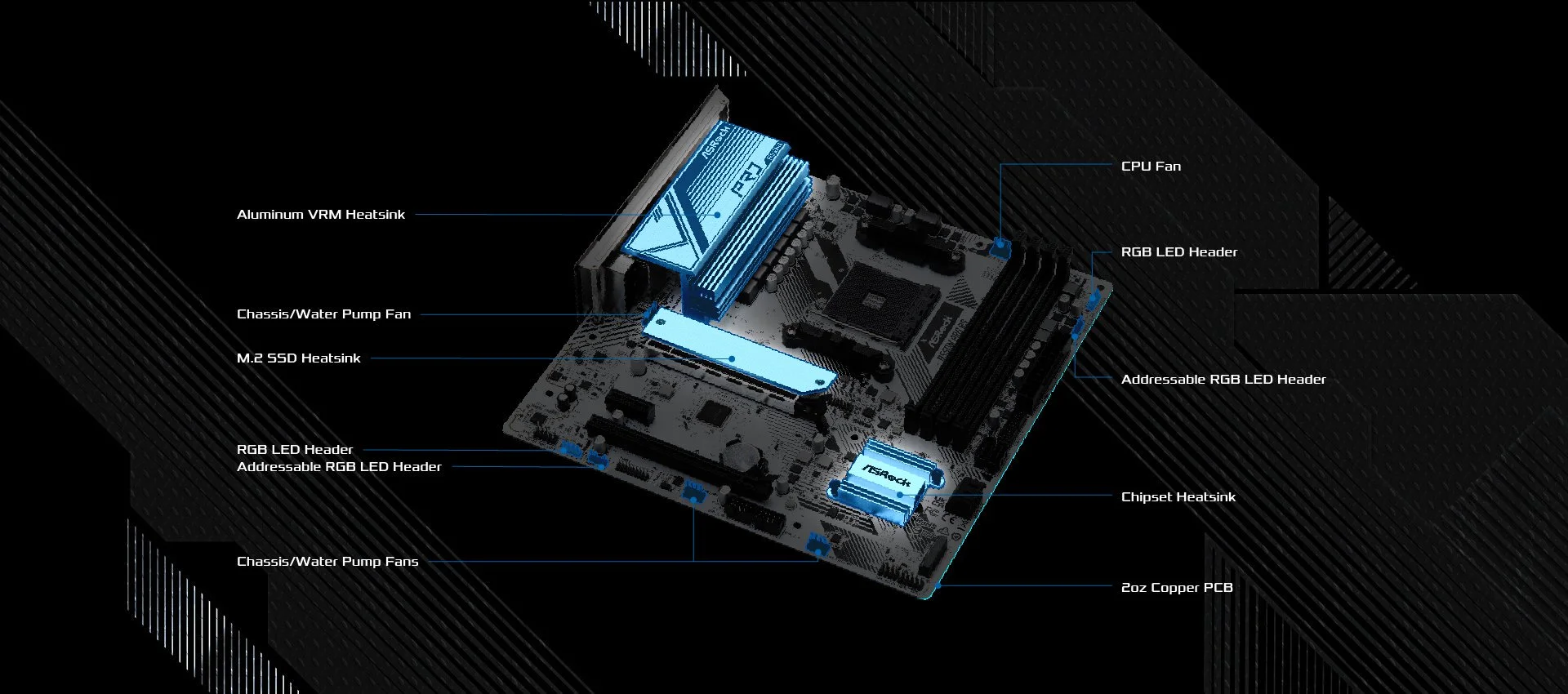

Internal Connectors
– 1 x SPI TPM Header
– 1 x Power LED/Speaker Header
– 2 x RGB LED Headers (12V/3A, 36W)
– 2 x Addressable LED Headers (5V/3A, 15W)
– 1 x CPU Fan (4-pin, 12W max)
– 3 x Chassis/Water Pump Fan (4-pin, 24W max)
– 1 x 24-pin ATX Power
– 1 x 8-pin 12V Power
– 1 x Front Audio Header
– 2 x USB 2.0 Headers (4 ports)
– 1 x USB 3.2 Gen1 Header (2 ports)

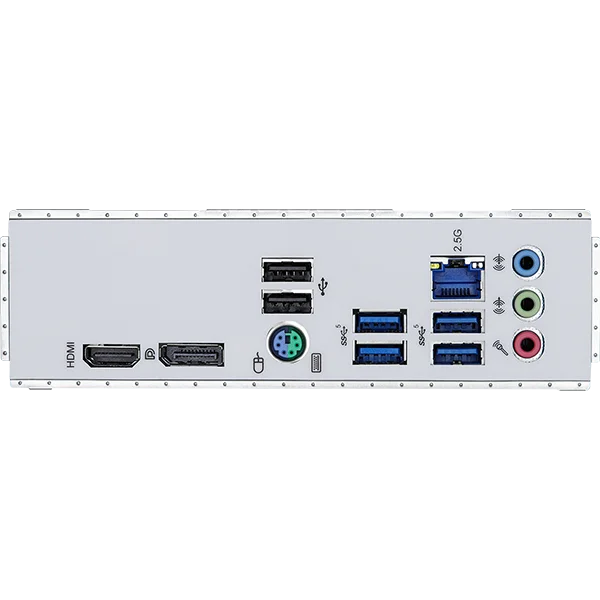

Rear I/O Ports
– 1 x PS/2 Keyboard/Mouse
– 1 x HDMI
– 1 x DisplayPort 1.4
– 4 x USB 3.2 Gen1
– 2 x USB 2.0
– 1 x RJ-45 (2.5G LAN)
– 3 x HD Audio Jacks (Line In, Front Speaker, Mic)

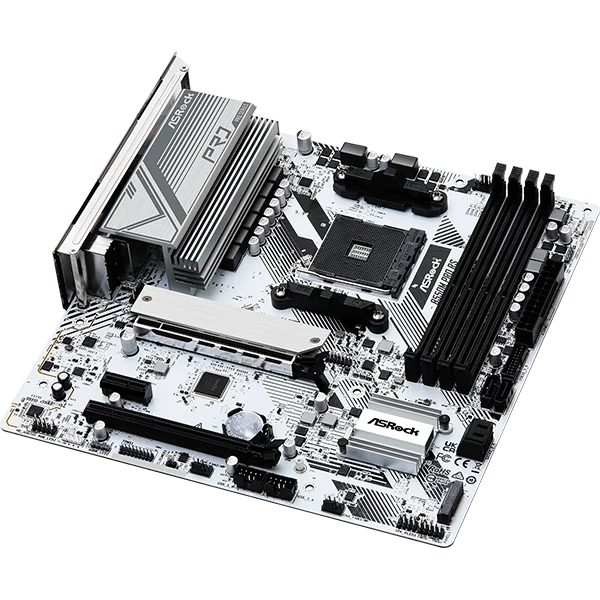

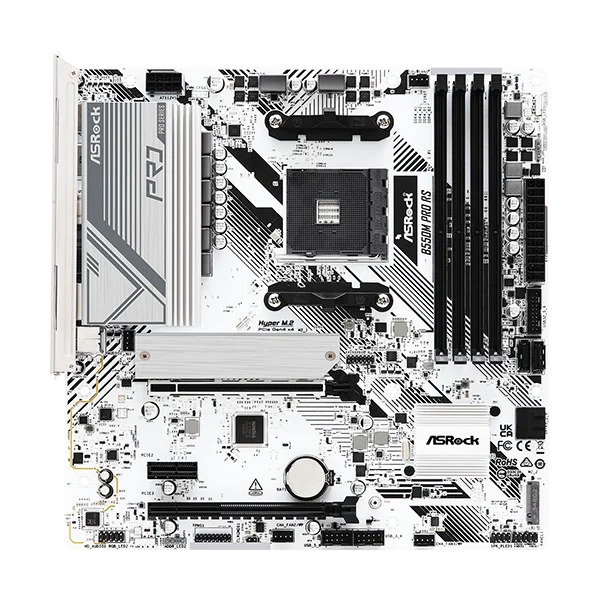

ASRock B550M Pro RS White Micro ATX Motherboard
