AMD Motherboards, Motherboards

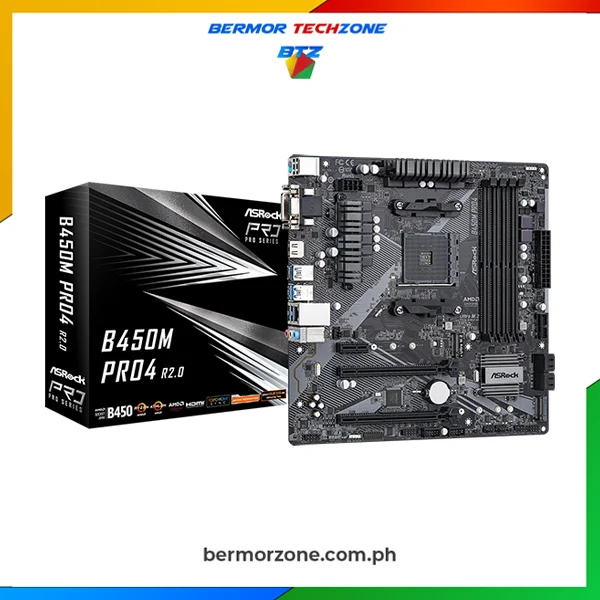

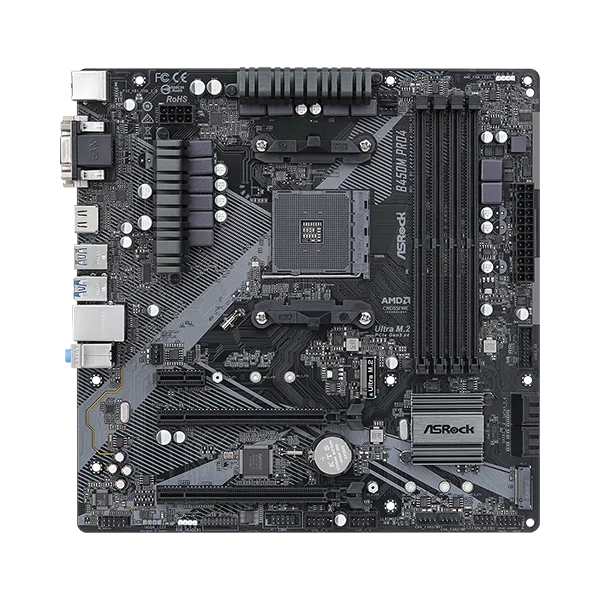

ASRock B450M Pro4 R2 DDR4 mATX Motherboard
Availability:
Out of Stock. Check Counterpart Models
- Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
- Supports DDR4 3200*
- 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1
- AMD Quad CrossFireX™
- Graphics Output:HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC892/897 Audio Codec)
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3x4), 1 M.2 (SATA3)
- 2 USB 3.2 Gen2 (Rear Type-A+C)
- 6 USB 3.2 Gen1 (2 Front, 4 Rear)
₱4,350.00 ₱5,295.00
6-Month Grace monthly payment:
₱439
12-Month Full Interest monthly payment:
₱515
Learn more about Billease Installment at Checkout
Out of Stock. Check Counterpart Models
Want to be Notified upon Restock
We will inform you when the product toggled in stock. Please leave your valid email address below.
Add to WishlistAlready In Wishlist
Add to Wishlist
| Unique Features | ASRock USB 3.2 Gen2: Type-A (10 Gb/s), Type-C (10 Gb/s) ASRock Super Alloy: Premium 42A Power Choke, Sapphire Black PCB, High Density Glass Fabric PCB, 2oz Copper PCB ASRock Ultra M.2 (PCIe Gen3 x4) ASRock Full Spike Protection (USB, Audio, LAN) ASRock Live Update & APP Shop |
| CPU | AMD AM4 Socket Ryzen™ 2000 / 3000 / 4000 G-Series / 5000 / 5000 G-Series Desktop Processors Digi Power Design 10 Power Phase Design |
| Chipset | AMD Promontory B450 |
| Memory | Dual Channel DDR4, 4× DIMM Slots, up to 128GB ECC & Non-ECC support (depends on CPU) Supports XMP 15μ Gold Contact DIMM Slots |
| Graphics | Integrated AMD Radeon™ Vega Graphics (APUs only) D-Sub, DVI-D, HDMI (Triple Monitor support) Max Resolutions: HDMI 4K@30Hz, DVI-D/D-Sub 1920×1200@60Hz DirectX 12, HDCP 1.4, UHD Playback (HDMI) |
| Audio | 7.1 CH HD Audio (Realtek ALC892/897 Codec), Content & Surge Protection |
| LAN | Realtek RTL8111H Gigabit LAN (10/100/1000 Mbps) Wake-On-LAN, Lightning/ESD Protection, PXE |
| Expansion Slots | 1× PCIe 3.0 x16 (x16 / x8 / x4 depending on CPU) 1× PCIe 2.0 x16 (x4 mode) 1× PCIe 2.0 x1 Supports AMD Quad CrossFireX™ / CrossFireX™ |
| Storage | 4× SATA3 6 Gb/s (RAID 0/1/10) 1× Ultra M.2 (PCIe Gen3 x4 or Gen3 x2) 1× M.2 (SATA3 6 Gb/s) Supports NVMe SSD boot disks, ASRock U.2 Kit |
| Internal Connectors | 1× COM Port, 1× TPM, Chassis Intrusion, Power LED/Speaker RGB/Addressable LED / AMD Fan LED headers CPU Fan, CPU/Water Pump, 3× Chassis/Water Pump Fan (Smart Fan Control) 24-pin ATX, 8-pin 12V, Front Audio, 2× USB 2.0 Headers, 1× USB 3.2 Gen1 Header |

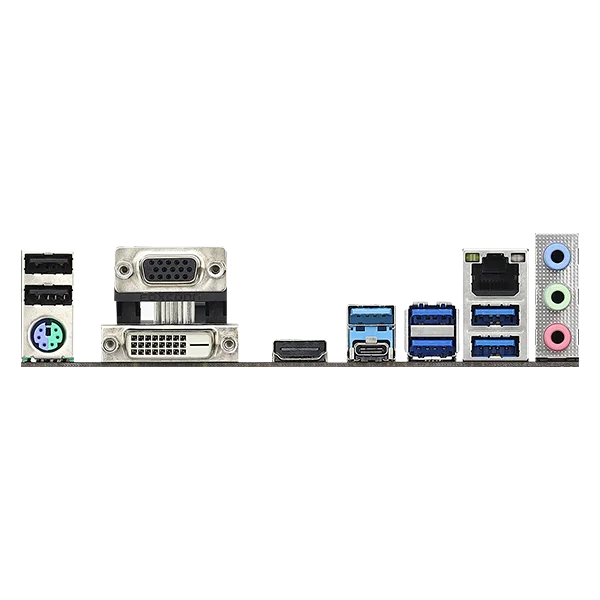

| Rear I/O | PS/2 Mouse/Keyboard, D-Sub, DVI-D, HDMI 2× USB 2.0, 4× USB 3.2 Gen1, 1× USB 3.2 Gen2 Type-A, 1× USB 3.2 Gen2 Type-C RJ-45 LAN, HD Audio Jacks (Line In / Front Speaker / Mic) |
| Software & UEFI | ASRock A-Tuning, Polychrome SYNC ASRock Full HD UEFI, Instant Flash, Easy RAID Installer |
| Accessories | I/O Shield, 2× SATA Data Cables, 2× M.2 Screws |
| Hardware Monitor | CPU / Chassis / Water Pump Temp & Fan Monitoring Quiet Fan & Multi-Speed Control Voltage Monitoring (+12V, +5V, +3.3V, Vcore) |
| Form Factor | Micro ATX (9.6″ × 9.6″, 24.4 cm × 24.4 cm) Solid Capacitor Design |
| Operating System | Windows® 10 64-bit / Windows® 11 64-bit* (*Summit Ridge not officially supported for Win 11) |
| Certifications | FCC, CE, ErP/EuP Ready (requires ErP/EuP PSU) |
| Brands | |
|---|---|
| CPU Socket | AM4 |
| AMD Chipset | B450 |
| Form Factor | MATX |
| RAM Generation | DDR4 |
