Ruijie Reyee Mini 1000BASE-SX SFP 1550-nm 80-km DDM Duplex LC SMF Optical Transceiver Module
Availability:
Out of Stock. Check Counterpart Models
As an industry-leading ICT infrastructure and industry solution provider, Ruijie offers customers a wide variety of high-density and low-power 1G optical modules. They are applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs).
Price range: ₱1,700.00 through ₱5,000.00
6-Month Grace monthly payment:
₱172
12-Month Full Interest monthly payment:
₱201
Learn more about Billease Installment at Checkout
Want to be Notified upon Restock
We will inform you when the product toggled in stock. Please leave your valid email address below.

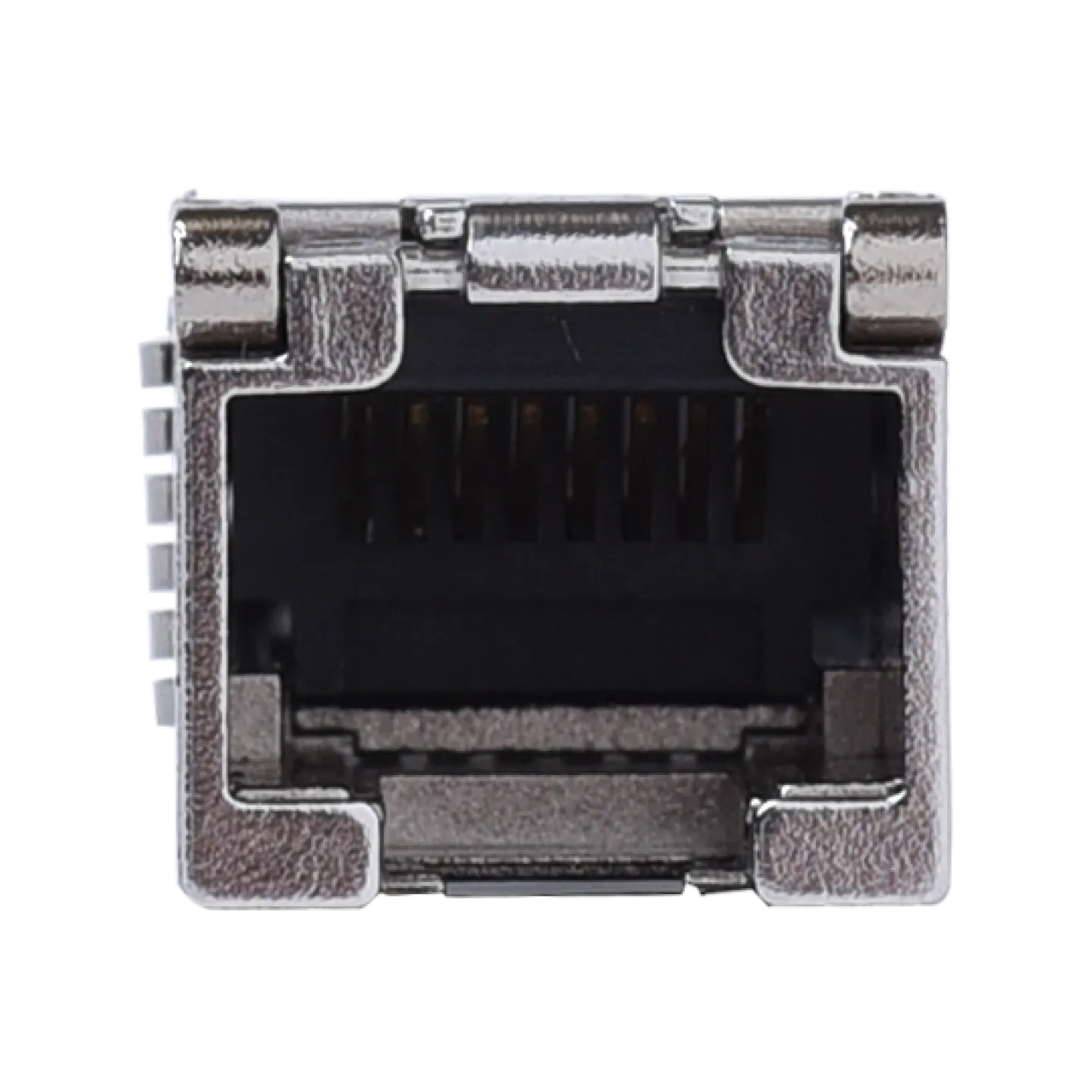

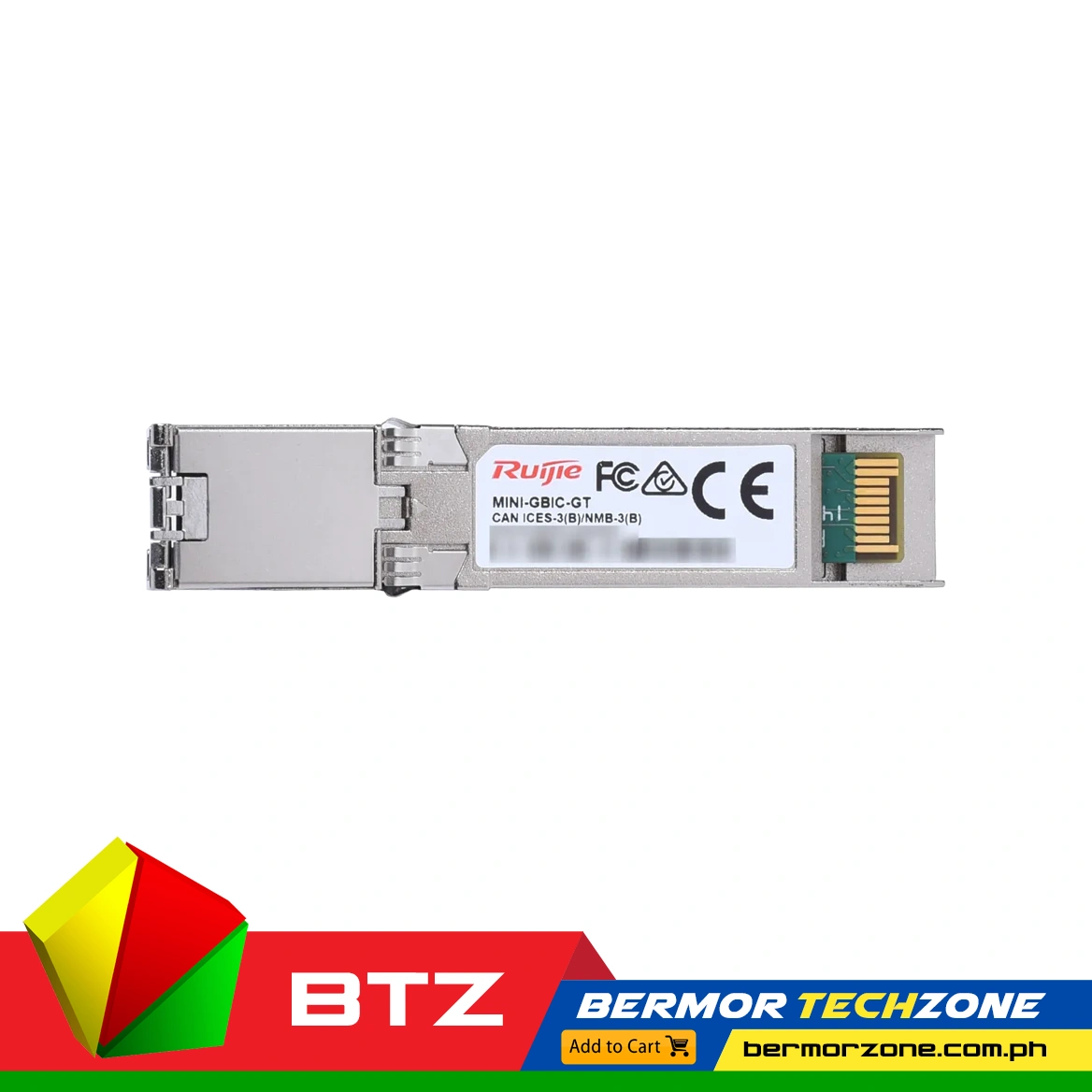

| Specification | MINI-GBIC-SX-MM850 | MINI-GBIC-LX-SM1310 | MINI-GBIC-LH40-SM1310 | MINI-GBIC-ZX80-SM1550 | MINI-GBIC-GT |
|---|---|---|---|---|---|
| Data Rate | 1.25 Gbps | 1.25 Gbps | 1.25 Gbps | 1.25 Gbps | 1000BASE-X to 1000BASE-T |
| Form Factor | SFP | SFP | SFP | SFP | SFP |
| Connector Type | Duplex LC | Duplex LC | Duplex LC | Duplex LC | RJ45 |
| Cable Type | MMF | SMF | SMF | SMF | Cat 5e/6/6a |
| Fiber End Face Finish Type | Ultra Physical Contact (UPC) | Ultra Physical Contact (UPC) | Ultra Physical Contact (UPC) | Ultra Physical Contact (UPC) | N/A |
| Transmitter Type | VCSEL | DFB | DFB | DFB | N/A |
| Receiver Type | PIN | N/A | N/A | N/A | N/A |
| Reach | 550 m (1,804.46 ft.) | 10 km (32,808.40 ft.) | 40 km (131,233.60 ft.) | 80 km (262,467.19 ft.) | 100 m (328.08 ft.) |
| Bit Error Ratio (BER) | 1.00E-12 | N/A | N/A | N/A | N/A |
| Data Diagnosis-Capable (DDM/DOM) | Yes | No | No | No | No |
| Power Consumption | ≤ 1.5 W | ≤ 1.5 W | ≤ 1.5 W | ≤ 1.5 W | ≤ 1.5 W |
Transmitter Optical Parameters
| Parameter | MINI-GBIC-SX-MM850 | MINI-GBIC-LX-SM1310 | MINI-GBIC-LH40-SM1310 | MINI-GBIC-ZX80-SM1550 | MINI-GBIC-GT |
|---|---|---|---|---|---|
| Wavelength (nm) | 850 | 1310 | 1310 | 1550 | N/A |
| Max. Transmit Power (AVG) | 0 dBm | –3 dBm | 0 dBm | 5 dBm | N/A |
| Min. Transmit Power (AVG) | –9.5 dBm | –11 dBm | –5 dBm | 0 dBm | N/A |
| Min. Extinction Ratio | ≥ 9 dB | N/A | N/A | N/A | N/A |
Receiver Optical Parameters
| Parameter | MINI-GBIC-SX-MM850 | MINI-GBIC-LX-SM1310 | MINI-GBIC-LH40-SM1310 | MINI-GBIC-ZX80-SM1550 | MINI-GBIC-GT |
|---|---|---|---|---|---|
| Receive Sensitivity (OMA) | < –17 dBm | < –19 dBm | < –23 dBm | < –27 dBm | N/A |
| Overload Optical Power (AVG) | 0 dBm | –3 dBm | –3 dBm | –3 dBm | N/A |
Environment and Reliability
| Parameter | MINI-GBIC-SX-MM850 | MINI-GBIC-LX-SM1310 | MINI-GBIC-LH40-SM1310 | MINI-GBIC-ZX80-SM1550 | MINI-GBIC-GT |
|---|---|---|---|---|---|
| Operating Temperature | 0°C to 70°C (32°F to 158°F) | 0°C to 70°C (32°F to 158°F) | 0°C to 70°C (32°F to 158°F) | 0°C to 70°C (32°F to 158°F) | 0°C to 70°C (32°F to 158°F) |
| Operating Humidity | 10% RH to 90% RH | 10% RH to 90% RH | 10% RH to 90% RH | 10% RH to 90% RH | 10% RH to 90% RH |
| Storage Temperature | –40°C to +85°C (–40°F to +185°F) | –40°C to +85°C (–40°F to +185°F) | –40°C to +85°C (–40°F to +185°F) | –40°C to +85°C (–40°F to +185°F) | –40°C to +85°C (–40°F to +185°F) |
| Storage Humidity | 10% RH to 90% RH | 10% RH to 90% RH | 10% RH to 90% RH | 10% RH to 90% RH | 10% RH to 90% RH |
Dimensions and Weight
| Parameter | MINI-GBIC-SX-MM850 | MINI-GBIC-LX-SM1310 | MINI-GBIC-LH40-SM1310 | MINI-GBIC-ZX80-SM1550 | MINI-GBIC-GT |
|---|---|---|---|---|---|
| Dimensions (W x D x H) | 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.) | 68 mm x 14 mm x 8.5 mm (2.68 in. x 0.55 in. x 0.33 in.) | 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.) | 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.) | 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.) |
| Weight | 35 g (0.08 lbs.) | 35 g (0.08 lbs.) | 35 g (0.08 lbs.) | 35 g (0.08 lbs.) | 35 g (0.08 lbs.) |
Single-Fiber SFP Series Module (BIDI) Specifications
| Specification | GE-SFP-LH40-SM1310-BIDI | GE-SFP-LH40-SM1550-BIDI | GE-SFP-LX20-SM1310-BIDI | GE-SFP-LX20-SM1550-BIDI | GE-SFP-LX03-SM1310-BIDI-I | GE-SFP-LX03-SM1550-BIDI-I |
|---|---|---|---|---|---|---|
| Data Rate | 1.25 Gbps | 1.25 Gbps | 1.25 Gbps | 1.25 Gbps | 1.25 Gbps | 1.25 Gbps |
| Form Factor | SFP | SFP | SFP | SFP | SFP | SFP |
| Connector Type | BIDI LC | BIDI LC | BIDI LC | BIDI LC | BIDI LC | BIDI LC |
| Cable Type | SMF | SMF | SMF | SMF | SMF | SMF |
| Fiber End Face Finish Type | Ultra Physical Contact (UPC) | Ultra Physical Contact (UPC) | Ultra Physical Contact (UPC) | Ultra Physical Contact (UPC) | Ultra Physical Contact (UPC) | Ultra Physical Contact (UPC) |
| Transmitter Type | DFB | DFB | FP | DFB | FP | DFB |
| Receiver Type | PIN | PIN | PIN | PIN | PIN | PIN |
| Reach | 40 km (131,233.60 ft.) | 20 km (65,616.80 ft.) | 3 km (9,842.52 ft.) | 3 km (9,842.52 ft.) | 3 km (9,842.52 ft.) | 3 km (9,842.52 ft.) |
| Bit Error Ratio (BER) | 1.00E-12 | 1.00E-12 | 1.00E-12 | 1.00E-12 | 1.00E-12 | 1.00E-12 |
| Data Diagnosis-Capable (DDM/DOM) | Yes | Yes | Yes | Yes | Yes | Yes |
| Power Consumption | ≤ 1.5 W | ≤ 1.5 W | ≤ 1.5 W | ≤ 1.5 W | ≤ 1.5 W | ≤ 1.5 W |
Transmitter Optical Parameters
| Parameter | GE-SFP-LH40-SM1310-BIDI | GE-SFP-LH40-SM1550-BIDI | GE-SFP-LX20-SM1310-BIDI | GE-SFP-LX20-SM1550-BIDI | GE-SFP-LX03-SM1310-BIDI-I | GE-SFP-LX03-SM1550-BIDI-I |
|---|---|---|---|---|---|---|
| Wavelength | 1310 nm TX | 1550 nm TX | 1310 nm TX | 1550 nm TX | 1310 nm TX | 1550 nm TX |
| 1550 nm RX | 1310 nm RX | 1550 nm RX | 1310 nm RX | 1550 nm RX | 1310 nm RX | |
| Max. Transmit Power (AVG) | 0 dBm | –3 dBm | 0 dBm | –3 dBm | 0 dBm | –3 dBm |
| Min. Transmit Power (AVG) | –5 dBm | –9 dBm | –5 dBm | –9 dBm | –5 dBm | –9 dBm |
| Min. Extinction Ratio | ≥ 9 dB | ≥ 9 dB | ≥ 9 dB | ≥ 9 dB | ≥ 9 dB | ≥ 9 dB |
Receiver Optical Parameters
| Parameter | GE-SFP-LH40-SM1310-BIDI | GE-SFP-LH40-SM1550-BIDI | GE-SFP-LX20-SM1310-BIDI | GE-SFP-LX20-SM1550-BIDI | GE-SFP-LX03-SM1310-BIDI-I | GE-SFP-LX03-SM1550-BIDI-I |
|---|---|---|---|---|---|---|
| Receive Sensitivity (OMA) | < –23 dBm | < –20 dBm | < –22 dBm | < –22 dBm | < –22 dBm | < –22 dBm |
| Overload Optical Power (AVG) | –3 dBm | –3 dBm | –3 dBm | –3 dBm | –3 dBm | –3 dBm |
Environment and Reliability
| Parameter | GE-SFP-LH40-SM1310-BIDI | GE-SFP-LH40-SM1550-BIDI | GE-SFP-LX20-SM1310-BIDI | GE-SFP-LX20-SM1550-BIDI | GE-SFP-LX03-SM1310-BIDI-I | GE-SFP-LX03-SM1550-BIDI-I |
|---|---|---|---|---|---|---|
| Operating Temperature | 0°C to 70°C (32°F to 158°F) | 0°C to 70°C (32°F to 158°F) | 0°C to 70°C (32°F to 158°F) | 0°C to 70°C (32°F to 158°F) | 0°C to 70°C (32°F to 158°F) | 0°C to 70°C (32°F to 158°F) |
| Operating Humidity | 5% RH to 95% RH | 5% RH to 95% RH | 5% RH to 95% RH | 5% RH to 95% RH | 5% RH to 95% RH | 5% RH to 95% RH |
| Storage Temperature | –40°C to +85°C (–40°F to +185°F) | –40°C to +85°C (–40°F to +185°F) | –40°C to +85°C (–40°F to +185°F) | –40°C to +85°C (–40°F to +185°F) | –40°C to +85°C (–40°F to +185°F) | –40°C to +85°C (–40°F to +185°F) |
| Storage Humidity | 5% RH to 95% RH | 5% RH to 95% RH | 5% RH to 95% RH | 5% RH to 95% RH | 5% RH to 95% RH | 5% RH to 95% RH |
Dimensions and Weight
| Parameter | GE-SFP-LH40-SM1310-BIDI | GE-SFP-LH40-SM1550-BIDI | GE-SFP-LX20-SM1310-BIDI | GE-SFP-LX20-SM1550-BIDI | GE-SFP-LX03-SM1310-BIDI-I | GE-SFP-LX03-SM1550-BIDI-I |
|---|---|---|---|---|---|---|
| Dimensions (W x D x H) | 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.) | 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.) | 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.) | 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.) | 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.) | 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.) |
| Weight | 35 g (0.08 lbs.) | 35 g (0.08 lbs.) | 35 g (0.08 lbs.) | 35 g (0.08 lbs.) | 35 g (0.08 lbs.) | 35 g (0.08 lbs.) |
| Brands | |
|---|---|
| Variant | MINI-GBIC-ZX80-SM1550, MINI-GBIC-SX-MM850, MINI-GBIC-LX-SM1310, MINI-GBIC-LH40-SM1310, Mini-GBIC-GT |
