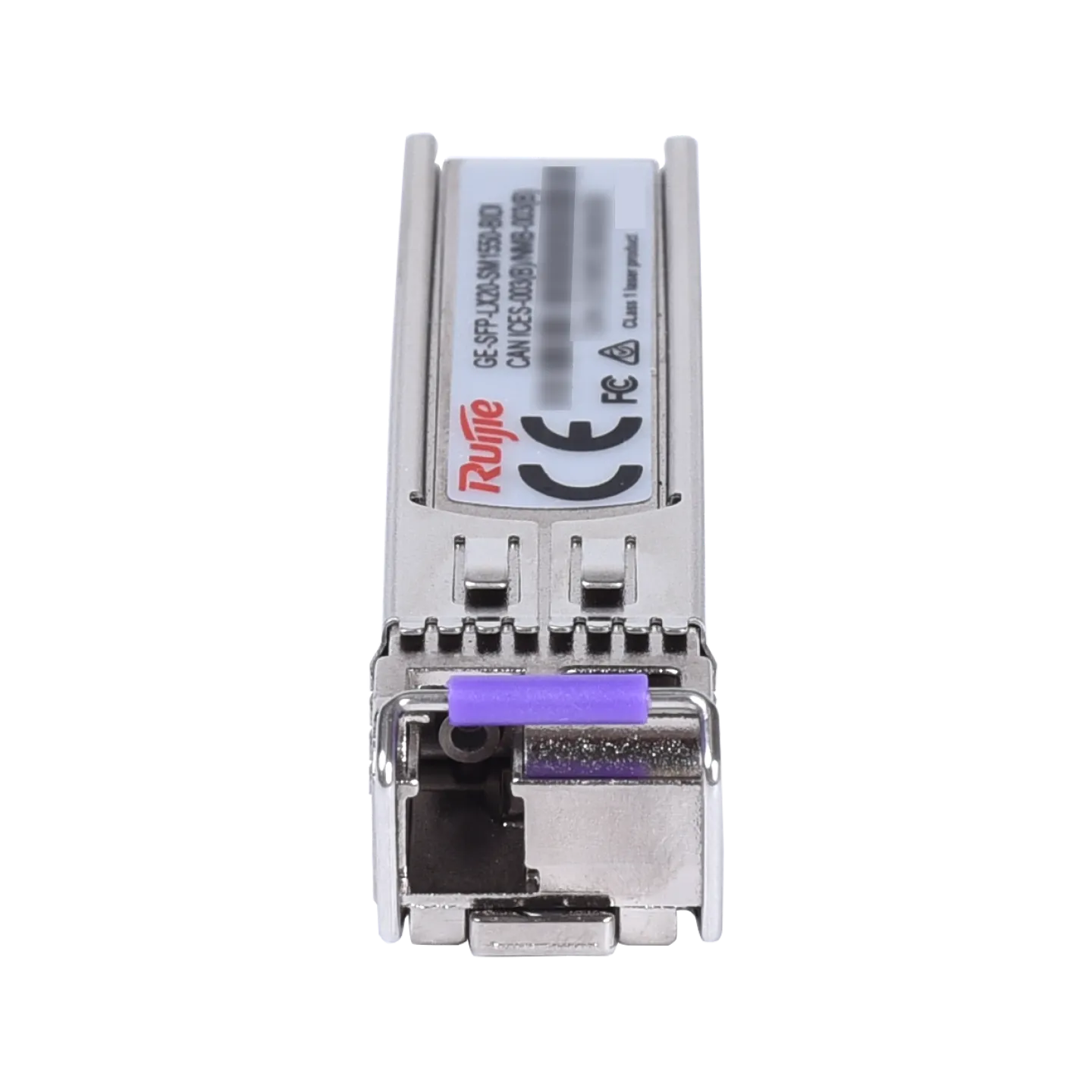

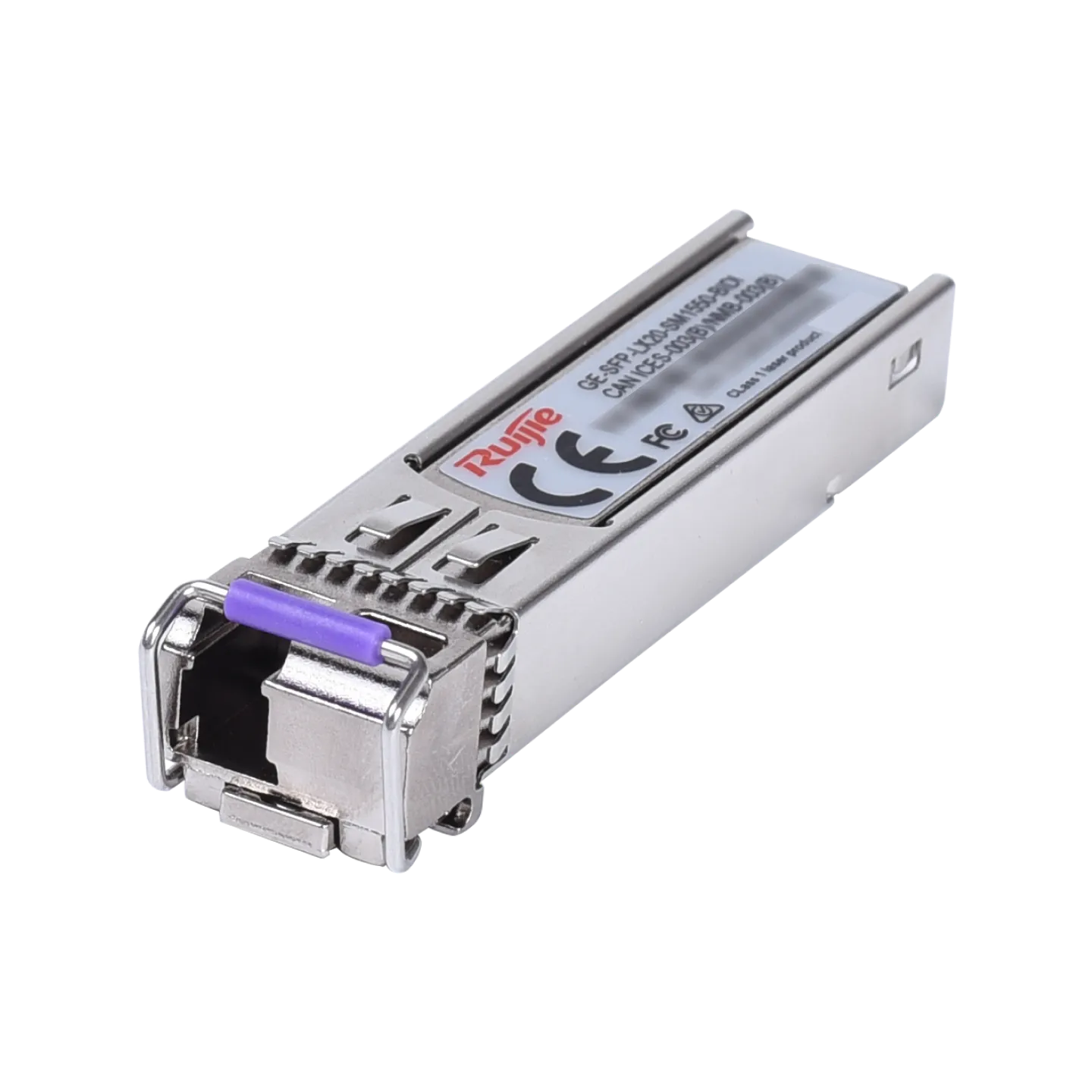

Ruijie Reyee GE-SFP-LX20-SM1550-BIDI 1000BASE-LX SFP 1550nm-TX/1310nm-RX 20-km DDM Simplex LC SMF Transceiver Module
Availability:
Out of Stock. Check Counterpart Models
- Data rate: 1.25 Gbps
- Form factor: SFP
- Connector type: BIDI LC
- Cable type: SMF
- Fiber end face finish type: Ultra Physical Contact (UPC)
- Transmitter type: DFB
- Receiver type: PIN
- Reach: 20 km (65,616.80 ft.)
- Bit error ratio (BER): 1.00E-12
- Data diagnosis-capable (DDM/DOM): Yes
- Power consumption: ≤ 1.5 W
- Wavelength: 1550 nm TX / 1310 nm RX
- Max. transmit power (AVG): –3 dBm
- Min. transmit power (AVG): –9 dBm
- Min. extinction ratio: ≥ 9 dB
- Receive sensitivity (OMA): < –20 dBm
- Overload optical power (AVG): –3 dBm
- Operating temperature: 0°C to 70°C (32°F to 158°F)
- Operating humidity: 5% RH to 95% RH
- Storage temperature: –40°C to +85°C (–40°F to +185°F)
- Storage humidity: 5% RH to 95% RH
- Dimensions (W x D x H): 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.)
- Weight: 35 g (0.08 lbs.)
₱2,600.00
6-Month Grace monthly payment:
₱263
12-Month Full Interest monthly payment:
₱308
Learn more about Billease Installment at Checkout
Out of Stock. Check Counterpart Models
Want to be Notified upon Restock
We will inform you when the product toggled in stock. Please leave your valid email address below.
Add to WishlistAlready In Wishlist
Add to Wishlist
| Specification | GE-SFP-LX20-SM1550-BIDI |
|---|---|
| Data rate | 1.25 Gbps |
| Form factor | SFP |
| Connector type | BIDI LC |
| Cable type | SMF |
| Fiber end face finish type | Ultra Physical Contact (UPC) |
| Transmitter type | DFB |
| Receiver type | PIN |
| Reach | 20 km (65,616.80 ft.) |
| Bit error ratio (BER) | 1.00E-12 |
| Data diagnosis-capable (DDM/DOM) | Yes |
| Power consumption | ≤ 1.5 W |
| Wavelength | 1550 nm TX / 1310 nm RX |
| Max. transmit power (AVG) | –3 dBm |
| Min. transmit power (AVG) | –9 dBm |
| Min. extinction ratio | ≥ 9 dB |
| Receive sensitivity (OMA) | < –20 dBm |
| Overload optical power (AVG) | –3 dBm |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Operating humidity | 5% RH to 95% RH |
| Storage temperature | –40°C to +85°C (–40°F to +185°F) |
| Storage humidity | 5% RH to 95% RH |
| Dimensions (W x D x H) | 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.) |
| Weight | 35 g (0.08 lbs.) |
