Chassis

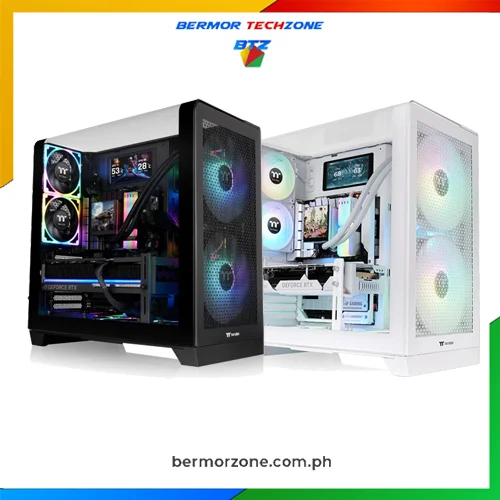

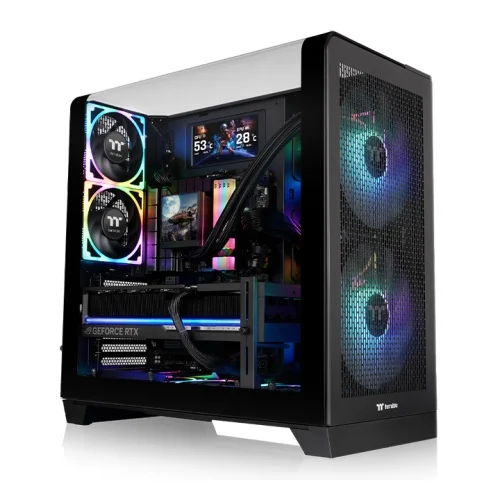

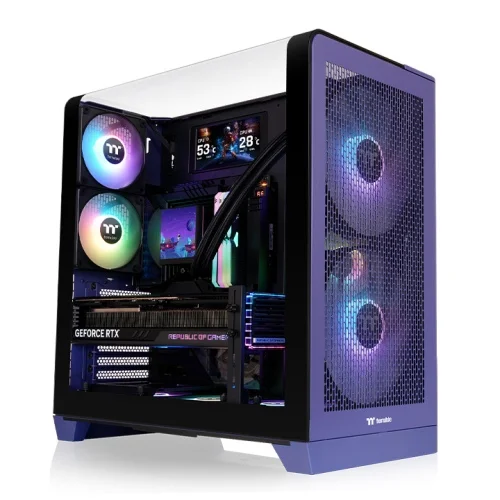

Thermaltake View 390 Air Mid Tower ATX Chassis with Curved TG Panel
Availability:
Out of Stock. Check Counterpart Models
-
Motherboard Support: ATX, Hidden-Connector ATX/Micro-ATX
-
I/O Ports: USB 3.2 Gen2 Type-C x1, USB 3.0 x2, HD Audio x1
-
PSU Support: Standard PS2 (optional)
-
Fan Support: Front 3×120 / 2×140 / 2×200mm; Right 3×120mm; Rear 2×120mm; Bottom 3×120mm
-
Radiator Support: Front 360/280/240/140/120mm; Right 360/240/120mm
-
Clearance (CPU): Up to 160mm cooler height
-
Clearance (GPU): 390mm (with rad) / 420mm (without rad)
-
Clearance (PSU): 200mm (with SSD) / 260mm (without SSD)
Want to be Notified upon Restock
We will inform you when the product toggled in stock. Please leave your valid email address below.
Add to WishlistAlready In Wishlist
Add to Wishlist
| P/N | CA-11F-00M1WN-00 | CA-11F-00M6WN-00 | CA-11F-00MMWN-00 | CA-11F-00MNWN-00 |
|---|---|
| Series | View |
| CASE TYPE | Mid Tower |
| Dimension (H x W x D) | 503 x 287 x 485mm (19.80 x 11.30 x 19.1inch) |
| PANEL | 4mm Tempered Glass x 1 |
| Color | Black |
| MATERIAL | SPCC |
| COOLING SYSTEM | Rear (exhaust): 120 x 120 x 25 mm CT120 fan (500~2000rpm, 25.8 dBA) x 2 |
| Drive Bays | 2 x 3.5” , 1 x 2.5” or 3 x 2.5” |
| EXPANSION SLOTS | 7(Rotatable Patented Design) |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| Hidden-Connector Motherboard | 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: 3 x 120mm 2 x 140mm 2 x 200mmRight: 3 x 120mm Rear: Bottom: |
| RADIATOR SUPPORT | Front Side(AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mmRight Side(AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm |
| CLEARANCE | CPU cooler height limitation: 160mm
VGA length limitation: PSU length limitation: 200mm (with 2.5” SSD) |
| Colors | Black, Snow, Butter Caramel, Future Dusk |
|---|---|
| Brands | |
| Chassis Size | ATX Midtower |
