Chassis

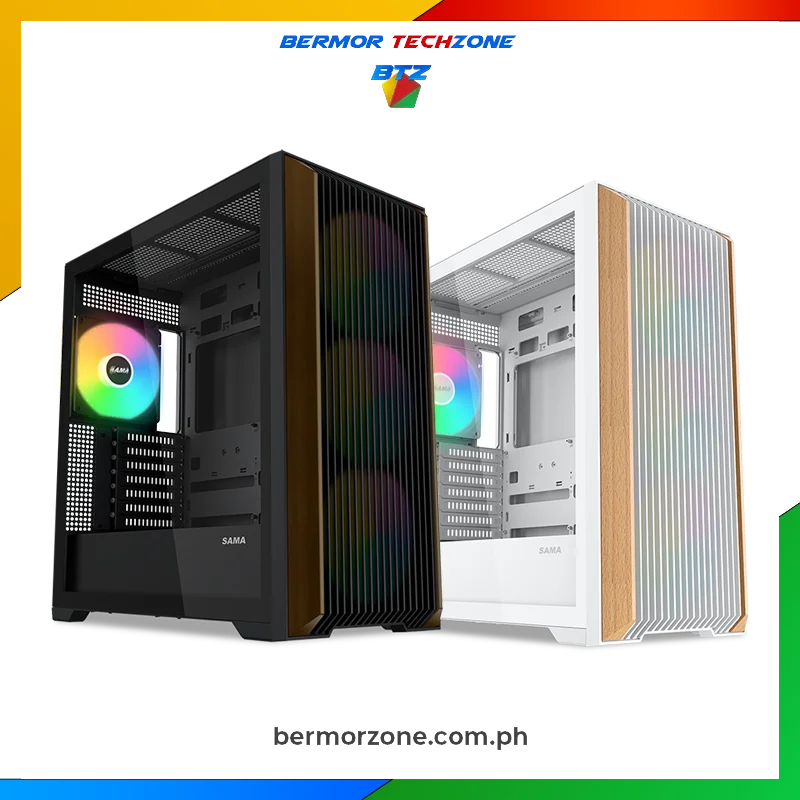

Sama Z60 Mid Tower E-ATX Chassis with Walnut Strips- Black | White
Availability:
Out of Stock. Check Counterpart Models
-

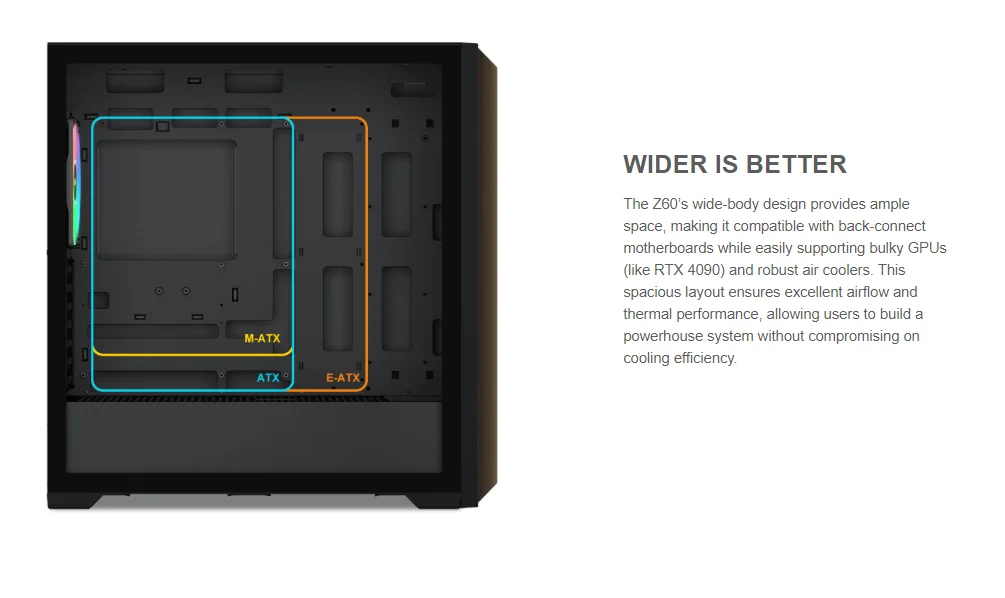

Motherboard Support: EEB, E-ATX (≤277mm), ATX, M-ATX, ITX, Back-connect ATX
-
CPU Cooler Clearance: up to 180mm
-
GPU Clearance: 410mm (280mm with HDD cage)
-
PSU Support: ATX, up to 250mm (160mm with HDD cage)

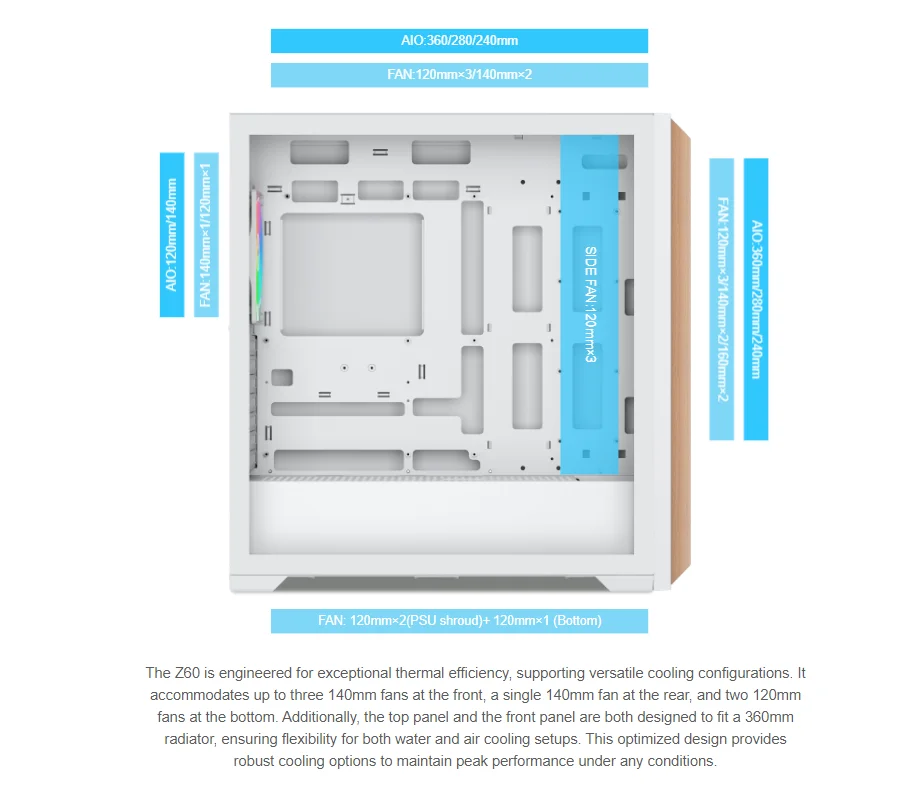

Cooling Support
-
Front: 3×120mm / 2×140mm / 2×160mm (Radiator: 360 / 280 / 240 / 140 / 120mm)
-
Top: 3×120mm / 2×140mm (Radiator: 360 / 280 / 240 / 140 / 120mm, max 46mm RAM height)
-
Rear: 1×120mm / 1×140mm (Radiator: 120mm)
-
Side: 3×120mm
-
Bottom: 2×120mm (PSU shroud) + 1×120mm

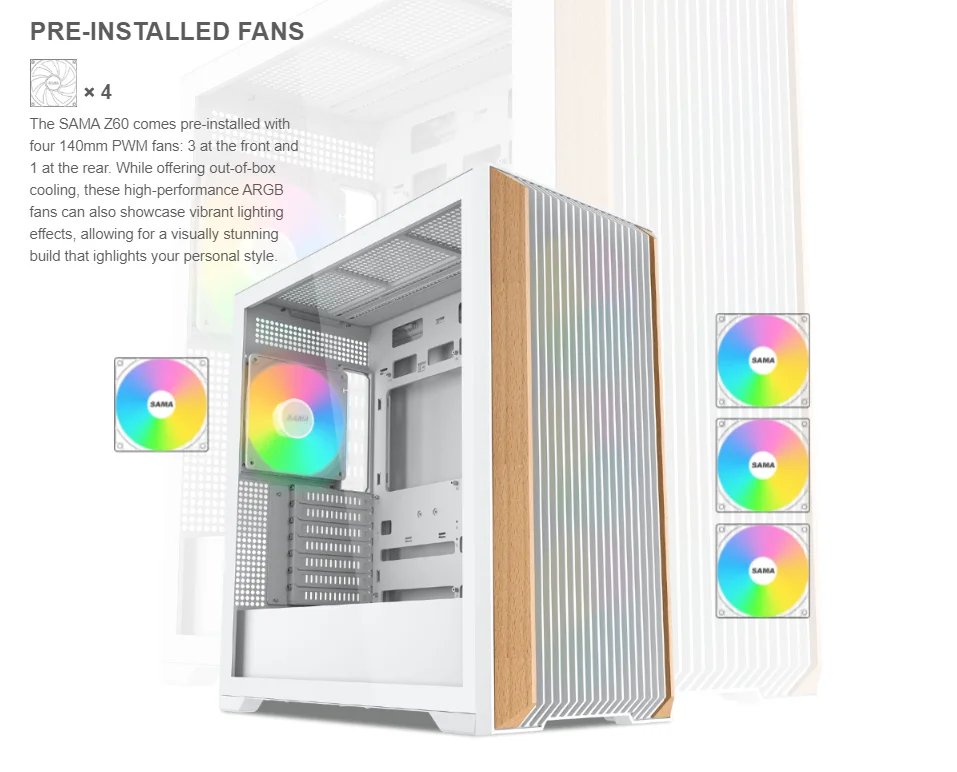

Pre-Installed Fans
Front: 3×140mm ARGB PWM (500–1500 rpm)
-
Rear: 1×140mm ARGB PWM (500–1500 rpm)
₱4,700.00
6-Month Grace monthly payment:
₱474
12-Month Full Interest monthly payment:
₱556
Learn more about Billease Installment at Checkout
Want to be Notified upon Restock
We will inform you when the product toggled in stock. Please leave your valid email address below.
| Dimensions | 480×235×496mm (L×W×H) | Radiator Support Front | 360 / 280 / 240 / 140 / 120mm |
| Materials | 0.7mm SPCC, SECC, | Top | 360 / 280 / 240 / 140 / 120mm |
| 4mm Tempered Glass, ABS | (max 46 mm RAM height) | ||
| Motherboard Support | EEB, E-ATX (≤277mm), ATX, | Rear | 120mm |
| M-ATX, ITX，Back-connect ATX | Bottom | N/A | |

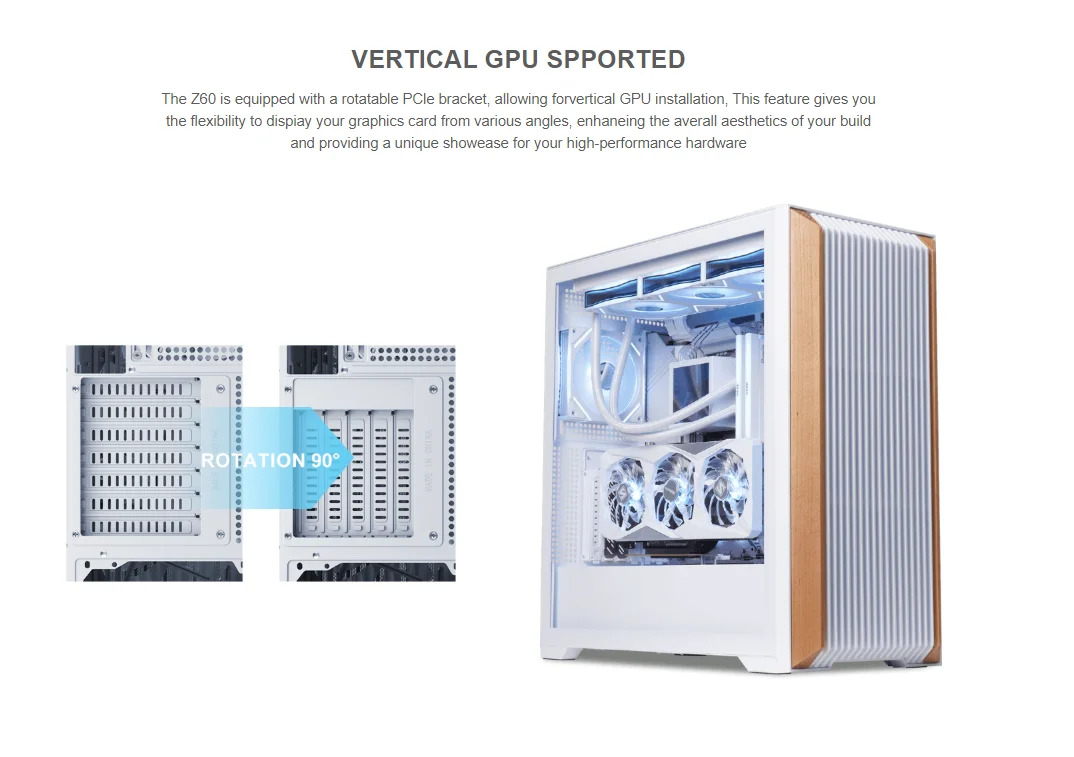

| Expansion Slots | 7+2 vertical slots | Pre-Installed Fans Front | 3×140mm ARGB PWM fans (500~1500 rpm) |
| Max CPU Cooler Height | 180mm | Rear | 1×140mm ARGB PWM fan (500~1500 rpm) |
| Max GPU Length | 410mm(280mm with HDD cage installed) | Bottom | None |
| Power Supply Type | ATX (Maximum length: 250mm / 160mm with HDD cage installed) |
||
| Fan Support Front | 3×120mm / 2×140mm / 2×160mm | Front I/O Ports | USB 3.1 Type-C×1, USB 3.0×2 |
| Top | 3×120mm / 2×140mm | Audio/Mic×1, Power, Reset | |
| Rear | 1×120mm / 1×140mm | 3.5″ Drive Bays | 2 |
| Bottom | 2×120mm (PSU shroud) + 1×120mm | 2.5″ Drive Bays | 0 + 4 combined with 3.5″ mounts |
| Side | 3×120mm | ||
| Brands | |
|---|---|
| Color | Black, White |
| Chassis Size | ATX Midtower |
