Chassis

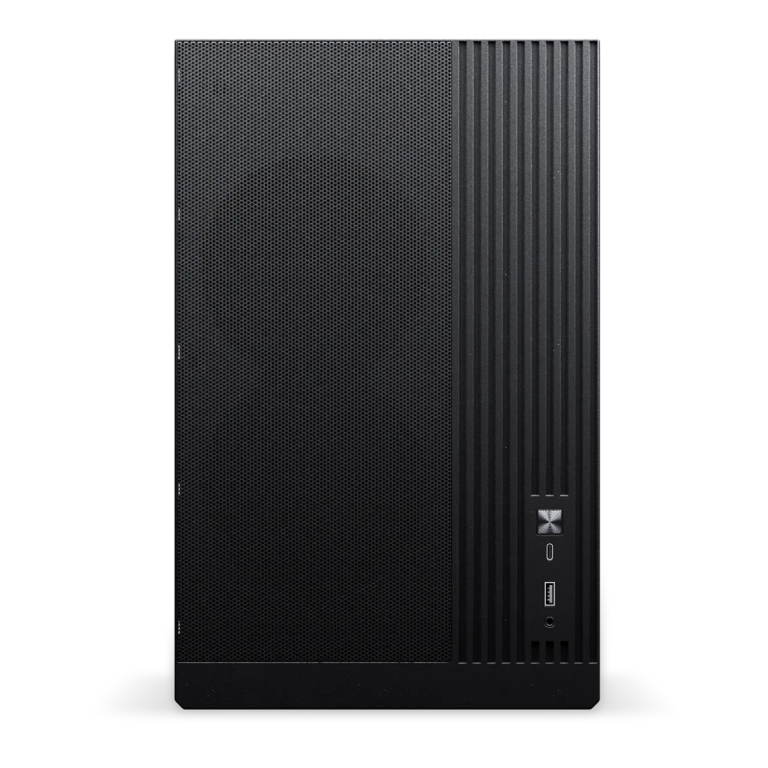

Phanteks XT M3 Compact Micro ATX Gaming Chassis – Black | White
Availability:
Out of Stock. Check Counterpart Models
₱4,250.00
6-Month Grace monthly payment:
₱429
12-Month Full Interest monthly payment:
₱503
Learn more about Billease Installment at Checkout
Want to be Notified upon Restock
We will inform you when the product toggled in stock. Please leave your valid email address below.
| Category | Details |
|---|---|
| Model No. | PH-XT325M_BK01 / PH-XT325M_DWT01 |
| UPC Code | 886523303763 / 886523303916 |
| Case Dimensions | 460 x 235 x 370 mm | 18.1 x 9.3 x 14.6 in |
| Form Factor | Compact microATX tower |
| Mainboard Support | Micro-ATX | Mini-ITX |
| Materials | Steel chassis | Tempered glass window | ABS plastic |
| Color | Black |
Expansion & Drive Bays
| Feature | Details |
|---|---|
| Expansion Slots | 4 |
| Vertical GPU Support | No |
| Internal 2.5″ Positions | 2 |
| Internal 3.5″ Positions | 1 |
Front I/O Ports
| Port | Count |
|---|---|
| USB 3.0 | 1 |
| USB-C 3.2 Gen 2×2 | 1 |
| Mic / Headphone Combo | 1 |
| Power Button | 1 |
Fan Support (120 mm | 140 mm)
| Location | 120 mm | 140 mm |
|---|---|---|
| Top | 3 | – |
| Front | 2 | – |
| Rear | 1 | – |
| Bottom | 3 | – |
| Side | – | – |
| Total Fans | 9 | – |
Radiator Support (120 mm | 140 mm)
| Location | 120 mm | 140 mm |
|---|---|---|
| Top | Max. 360 mm | – |
| Front | – | – |
| Rear | – | – |
| Bottom | – | – |
Component Clearances
| Component | Clearance |
|---|---|
| CPU Cooler Height | 175 mm | 6.88 in |
| GPU Length | 430 mm | 15.94 in (without front fans) |
| GPU Width | 175 mm | 6.88 in |
| Power Supply Length | 150 mm | 5.90 in |
Top 360 Radiator Max Size
| Dimensions (L x W x H) |
|---|
| 410 x 122 x 60 mm |
| 16.14 x 4.80 x 2.36 in |
Weight
| Type | Weight |
|---|---|
| Net Weight | 5.57 kg | 12.28 lbs |
| Gross Weight | 6.90 kg | 15.21 lbs |
Specification may change without further notice.
| Brands | |
|---|---|
| Color | Black, White |
| Chassis Size | MicroATX Midtower |
| Form Factor | MATX |
