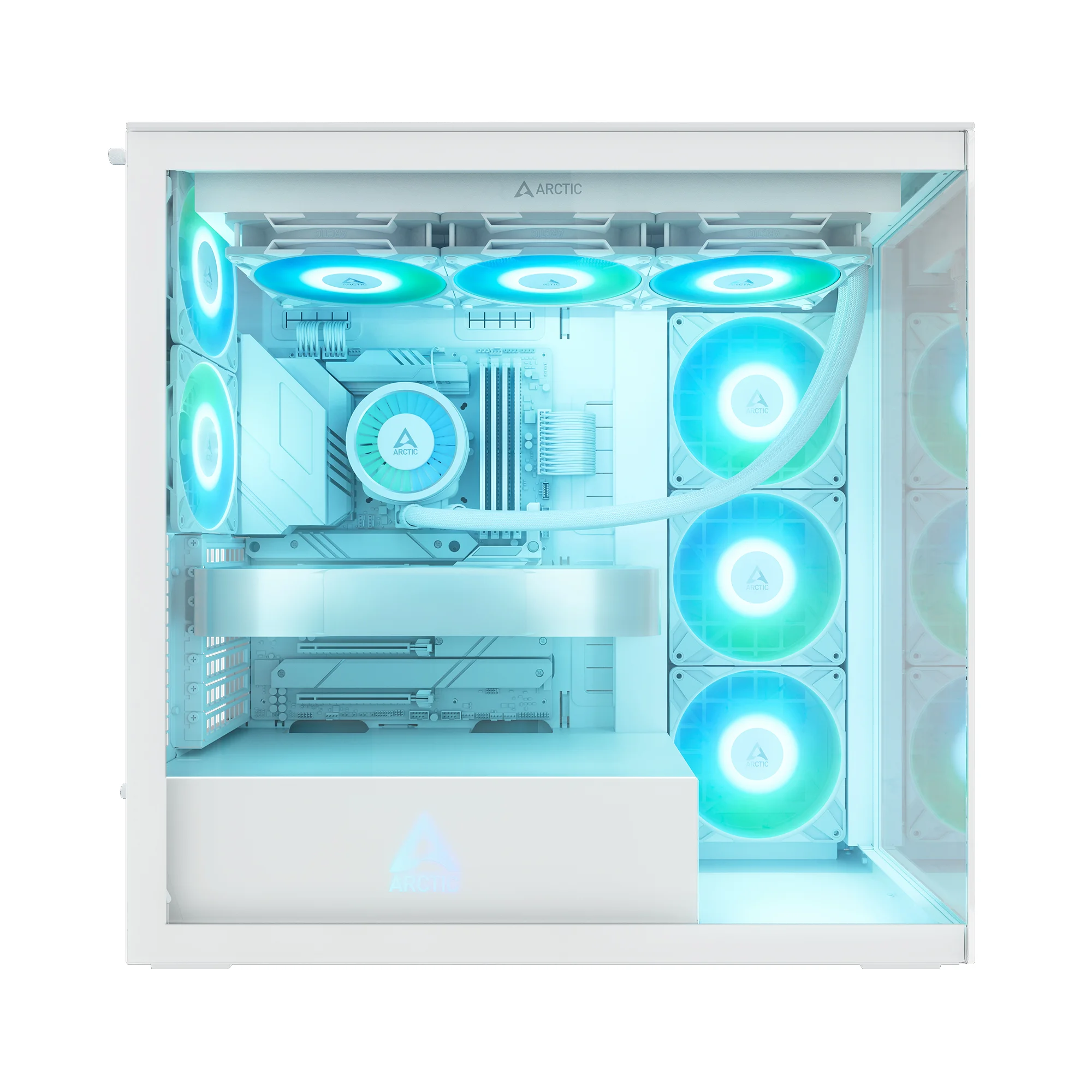

ARCTIC Xtender Premium E-ATX PC Case with 5 Pre-Installed A-RGB Fans
Out of Stock. Check Counterpart Models
-
Dimensions: 529 × 231 × 529 mm
-
Volume: 64 L
- SKUS: ACPCC00015A | ACPCC00014A | ACPCC00018A
-
Weight: 15.4 kg
-
Operating Temperature: 0–40 °C
-
Motherboard Support: Up to E-ATX (285 mm wide)
-
GPU Clearance: Up to 482 mm (337 mm w/ side radiator)
-
CPU Cooler Clearance: Up to 171 mm
-
PSU Support: Up to 318 mm (200 mm w/ HDD cage)
-
Fan Support:
-
Top: 3×120 mm / 3×140 mm
-
Side: 3×120 mm / 3×140 mm (included: 3× P14 Pro Reverse A-RGB)
-
Rear: 2×120 mm (included: 2× P12 Pro A-RGB)
-
-
Radiator Support: Top & Side up to 360/420 mm
-
Front I/O:
-
USB-C (USB 3.2 Gen2x1 – 10 Gbps)
-
2× USB-A (USB 3.2 Gen1x1 – 5 Gbps)
-
3.5 mm Line-In/Out
-
Power Button
-
-
Drive Bays:
-
3× 2.5″ behind motherboard tray
-
HDD cage: 2× 3.5″ or 2.5″ + 1× 2.5″
-
-
PCI Slots: 7
-
Cable Management Space: 35 mm
-
Dust Filters: Top, Right Side
-
Included Fans:
-
2× P12 Pro A-RGB (rear)
-
3× P14 Pro Reverse A-RGB (side)
-
Price range: ₱9,500.00 through ₱9,900.00
| Specification | Details |
|---|---|
| Operating Ambient Temperature | 0–40 °C |
| Net Weight | 15.4 kg |
| Volume | 64 L |
| Dimensions (L × W × H) | 529 × 231 × 529 mm |
| Motherboard Support | Up to E-ATX (285 mm wide) |
| PCI Slots | 7 |
| Cable Management Space | 35 mm |
| Dust Filters | Top, Right Side |
Cooling Support
Fan Support
| Location | Support |
|---|---|
| Top | 3 × 120 mm / 3 × 140 mm |
| Side | 3 × 120 mm / 3 × 140 mm (3× included) |
| Rear | 2 × 120 mm (included) |
Radiator Support
| Location | Support |
|---|---|
| Top | Up to 360 / 420 mm |
| Side | Up to 360 / 420 mm |
Component Clearances
| Component | Clearance |
|---|---|
| CPU Cooler Height | Up to 171 mm |
| PSU Length | Up to 318 mm (200 mm with HDD Cage) |
| GPU Length | Up to 482 mm (337 mm with Side Radiator) |
Front I/O Ports
| Port | Specification |
|---|---|
| USB-C | USB 3.2 Gen2x1 (10 Gbps) |
| 2 × USB-A | USB 3.2 Gen1x1 (5 Gbps) |
| 3.5 mm Jack | Line-In/Out |
| Controls | Power Button |
Drive Bays
| Location | Bays |
|---|---|
| Behind Motherboard Tray | 3 × 2.5″ |
| HDD Cage | 2 × 3.5″ or 2.5″ + 1 × 2.5″ |
Included Fan Specifications
Rear Fans – 2× P12 Pro A-RGB
| Specification | Details |
|---|---|
| Speed | 600–3000 rpm |
| Airflow | 77 cfm / 131 m³/h |
| Static Pressure | 6.9 mmH₂O |
| Bearing Type | Fluid Dynamic Bearing |
| Current / Voltage | 0.33 A / 12 V DC |
| Connector | 4-Pin Fan Plug + Socket |
| RGB LEDs | 12 × A-RGB Gen 2 |
| RGB Current / Voltage | 0.40 A / 5 V DC |
| RGB Connector | 3-Pin A-RGB Plug + Socket |
Side Fans – 3× P14 Pro Reverse A-RGB
(Pre-installed on side)
| Specification | Details |
|---|---|
| Speed | 400–2650 rpm |
| Airflow | 98 cfm / 166.5 m³/h |
| Static Pressure | 5.1 mmH₂O |
| Bearing Type | Fluid Dynamic Bearing |
| Current / Voltage | 0.40 A / 12 V DC |
| Connector | 4-Pin Fan Plug + Socket |
| RGB LEDs | 12 × A-RGB Gen 2 |
| RGB Current / Voltage | 0.40 A / 5 V DC |
| RGB Connector | 3-Pin A-RGB Plug + Socket |
Vertical GPU Mounting Kit (Included in VG Versions)
| Specification | Details |
|---|---|
| Dimensions (L × W × H) | 196 × 153 × 140 mm |
| GPU Support | Up to 482 mm, 3-slot |
| Compatibility | PCIe 4.0 (backward compatible) |
| Riser Cable | 160 mm, PCIe 4.0 x16 |
| PCI Slots Required | 7 |
PSU RGB Stripe (VG Versions Only)
| Specification | Details |
|---|---|
| LEDs | 24 × A-RGB Gen 2 |
| Current / Voltage | 0.40 A / 5 V DC |
| Connector | 3-Pin A-RGB Plug + Socket |
| Brands | |
|---|---|
| Chassis Size | ATX Midtower, EATX Midtower |
| Form Factor | ATX, EATX |
| Color | Black, White, Mirror Black |
