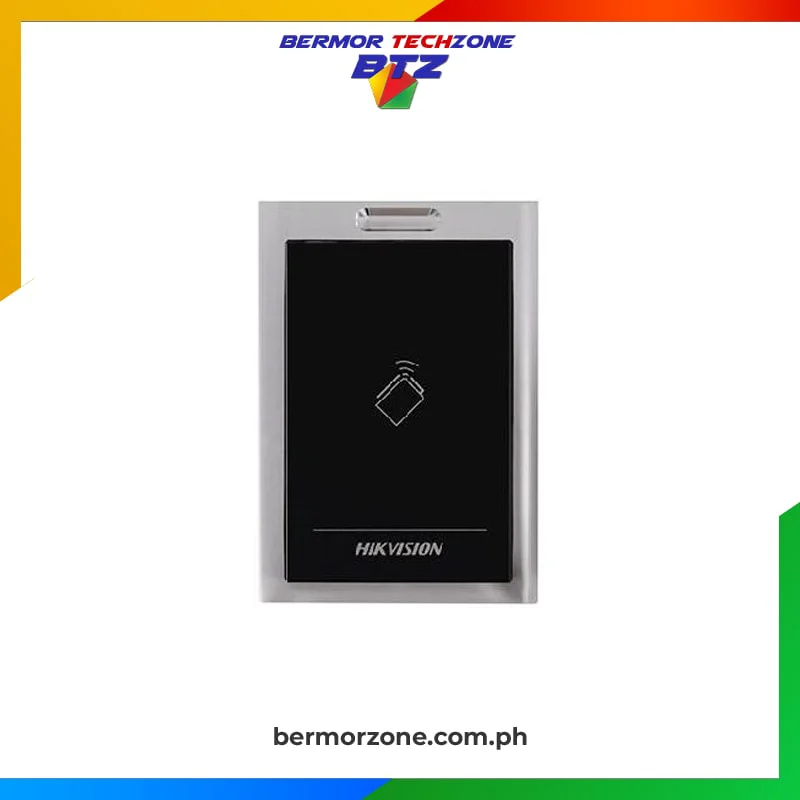

HIKVISION DS-K1101M Pro 1101 Series Card Reader
Availability:
Out of Stock. Check Counterpart Models
Features:
- Secure smart-card support — Reads standard MIFARE 13.56 MHz (Classic) cards with reliable 30–50 mm range.
- Flexible integration — Equipped with RS‑485 and Wiegand outputs (26/34-bit), switch-configurable for various systems.
- Rugged & weather-resistant — IP64-rated with wide operating temperature range (–20 °C to +65 °C) and non-condensing humidity tolerance.
- Smart internal design — Includes 32-bit processor, DIP-switch ID setup, buzzer, LEDs, tamper detection, watchdog protection, and firmware upgrade support.
- Optional PIN entry — MK variant adds a 12-key keypad for additional card+PIN authentication, increasing security flexibility.
₱1,195.00
6-Month Grace monthly payment:
₱121
12-Month Full Interest monthly payment:
₱142
Learn more about Billease Installment at Checkout
Out of Stock. Check Counterpart Models
Want to be Notified upon Restock
We will inform you when the product toggled in stock. Please leave your valid email address below.
Add to WishlistAlready In Wishlist
Add to Wishlist
| Specification | Details |
|---|---|
| Card Type | MIFARE (13.56 MHz), Classic 1K/4K |
| Interfaces | RS‑485 & Wiegand (26/34‑bit) with DIP switch for setting |
| Power Supply | 12 V DC, ≤ 500 mA (≤ 2 W) |
| Read Distance | ~30–50 mm (1.2–2.0″) |
| Durability & Rating | IP64, –20 °C to +65 °C, 10–90% RH (non-condensing) |
| Housing & Panel | PC+ABS shell with PMMA front panel; ≤ 0.14 kg |
| Processor & Alerts | 32‑bit CPU; built-in buzzer, LEDs, tamper alarm, watchdog |
| Keypad Option | MK version: 12-key input (0–9, *, #); M version: no keypad |
| Installation | Fits 120 mm gang box; supports firmware upgrade via RS‑485 |
